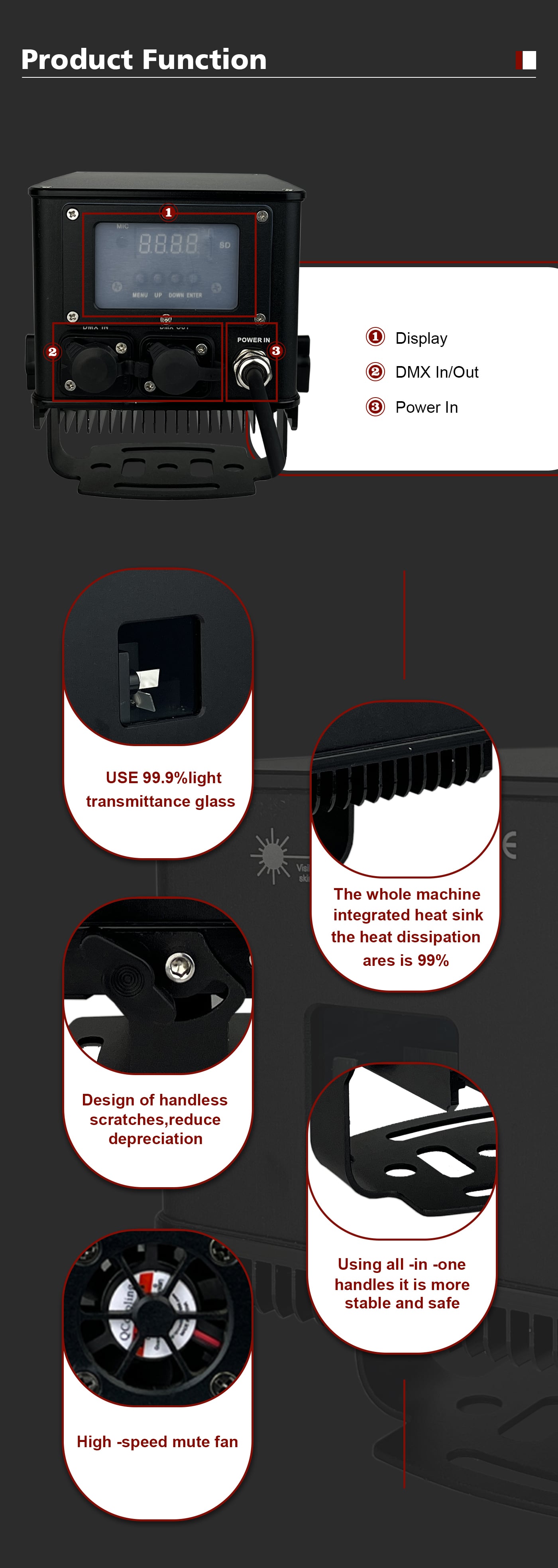

Product features: Integrated structural design, 100% sealing, Waterproof level reaches IP65
Laser power: | 2w[ R:500mw 638nm;G:500mw 520nm; B:1w 445nm] |
Cooling method: | integrated aluminum radiator, the whole machine is cold and cooling down |
Control signal mode: | Analog modulation |
modulation voltage: | ≦100K |
Laser divergence angle: | <1.2mrad (full -angle) |
Laser spot size: | 3*6.2mm at the size of the outlet |
Galvanometer: | AT 15KPPS High-quality medium membrane reflectance> 99% @45 ° incident (cover wavelength: 400nm-680mm) |
Scan angle: | maximum 60 ° |
Laser service life: | ≥10000 hours (test results in the constant temperature environment) |
Laser level: | Class IV |
IP rate: | IP65 |
Control mode: | SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels, master/slave mode, ILDA software control |

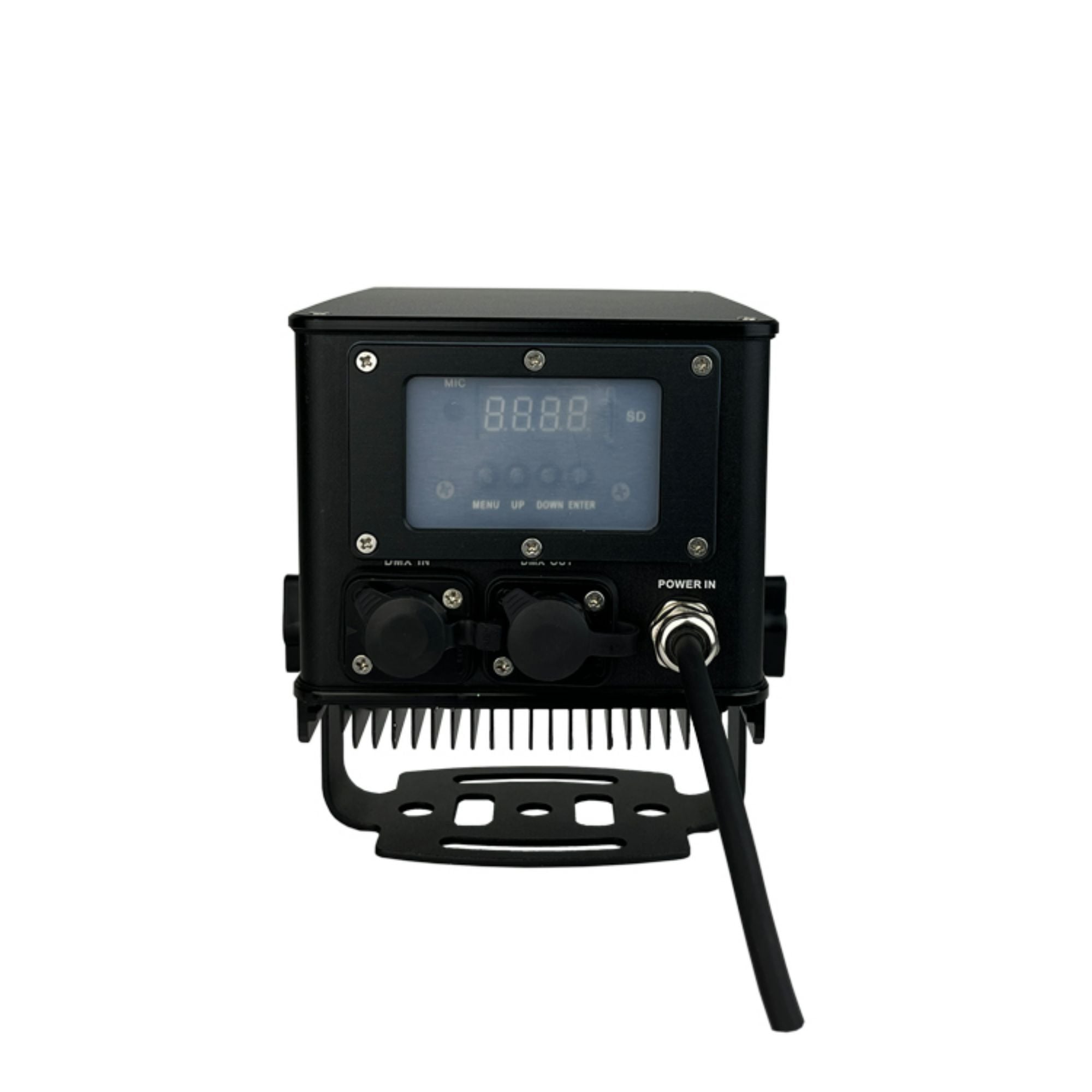

Back control: | AT-S2 digital display, 3 stitches 512 in/out, power input, |
Work temperature: | -10C-45 ° C |
Voltage: | 100-250V |
Rated power: | 20W |
Application: | Outdoor show, outdoor advertising, outdoor scenic parks, outdoor roofs, etc.. |
Warranty: | 1 year |

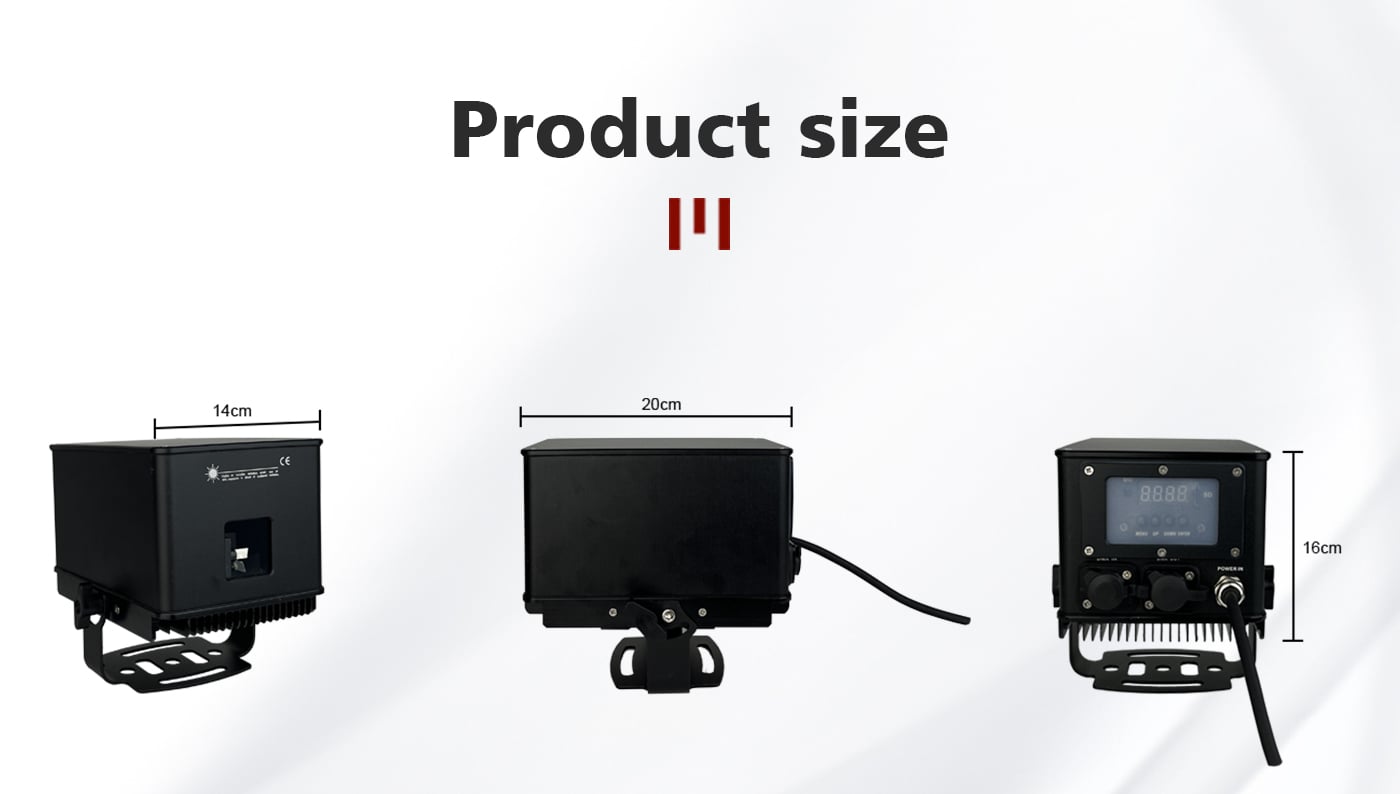

Size: | 14*20*17cm (L* W * H) net weight: 2kgs |
