Laser power: | 120w (Red: 30w/638nm Green: 40w/520nm Blue: 50w/450nm) |

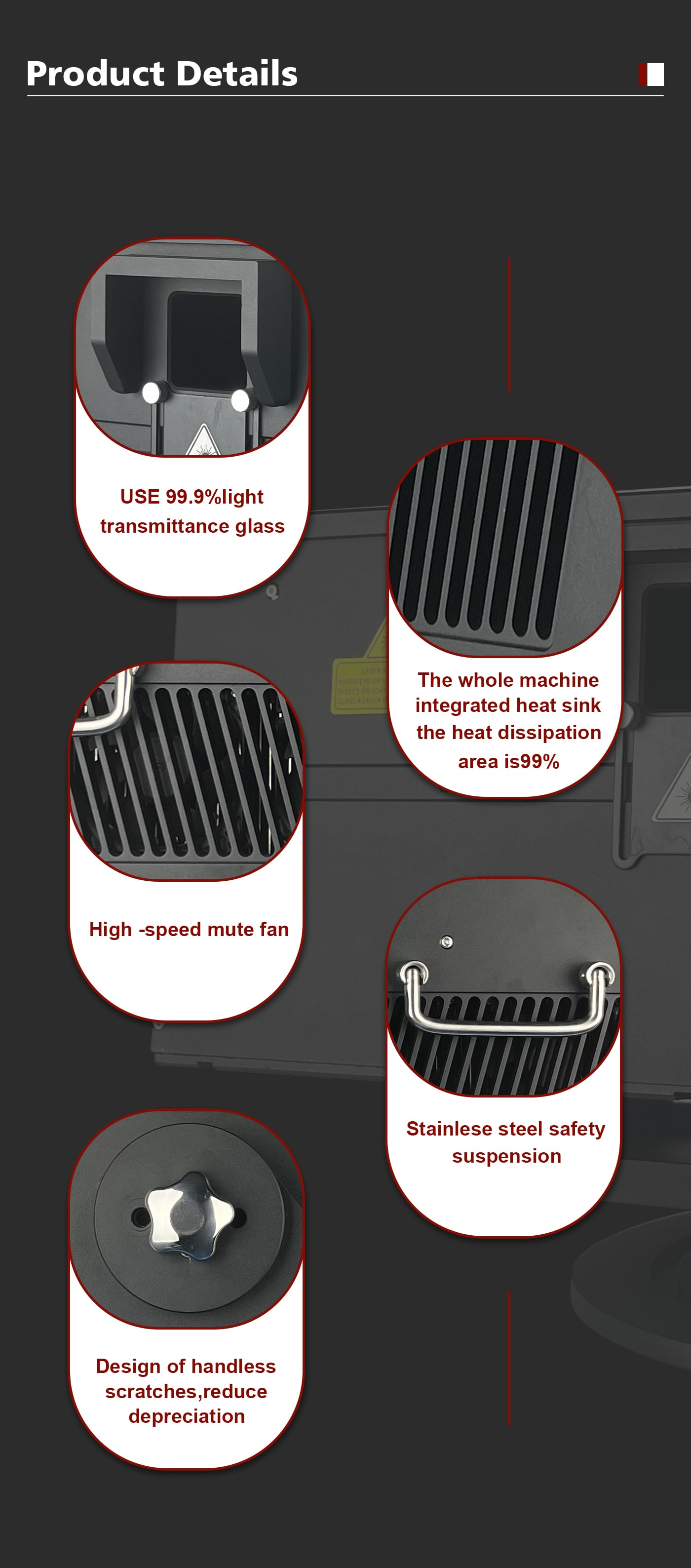

Cooling method: | The laser is equipped with TEC refrigeration, and the whole machine is air-cooled to cool down |
Control signal mode: | TTL/analog automatic switching Modulation |
modulation voltage: | ≦100K |
Laser divergence angle: | <1.2 mrad (full angle) |
Laser spot size: | the size of the light outlet:≦14*6.5mm |
Galvanometer: | 20kpps galvanometer high-quality dielectric film reflectivity >99% @45° incident (coverage wavelength: 400nm-680mm) |
Scan angle: | +- 20° (40°) |
Laser service life: | ≥10000 hours (test results in the constant temperature environment) |
Laser level: | Class IV |
IP rate: | IP65 |
Control mode: | American pangolin FB4 control panel, automatic operation, DMX, master/slave mode, ILDA |

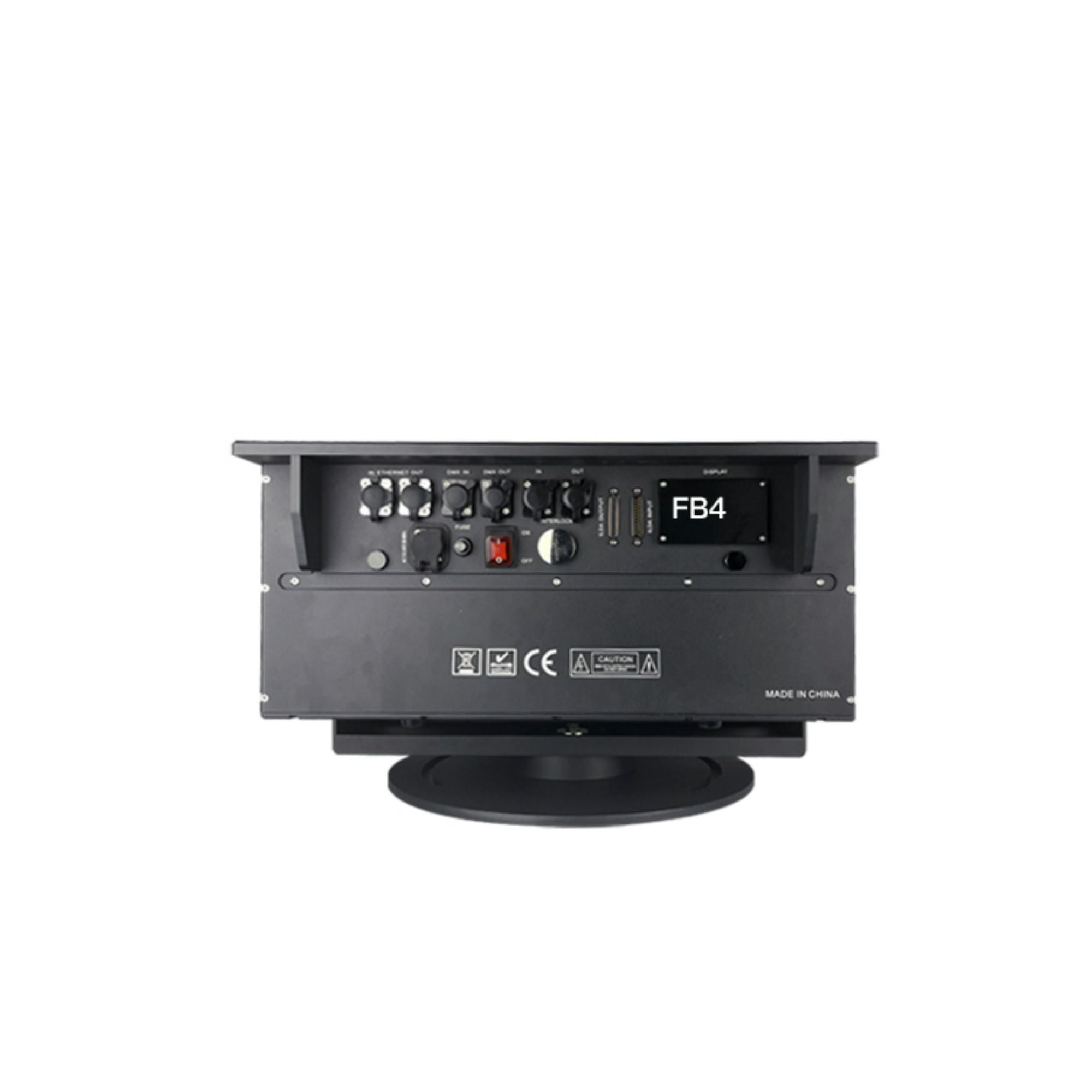

Back control: | FB4 LCD screen, FB4 network in/out, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in, fuse |
Outdoor temperature use: | -40-50° (built-in constant temperature system) |
Work temperature: | -40-50° (built-in constant temperature system) |
Power consumption: | 1500 watts |
Laser service life: | ≥10000 hours (keep the test results in a constant temperature environment) |

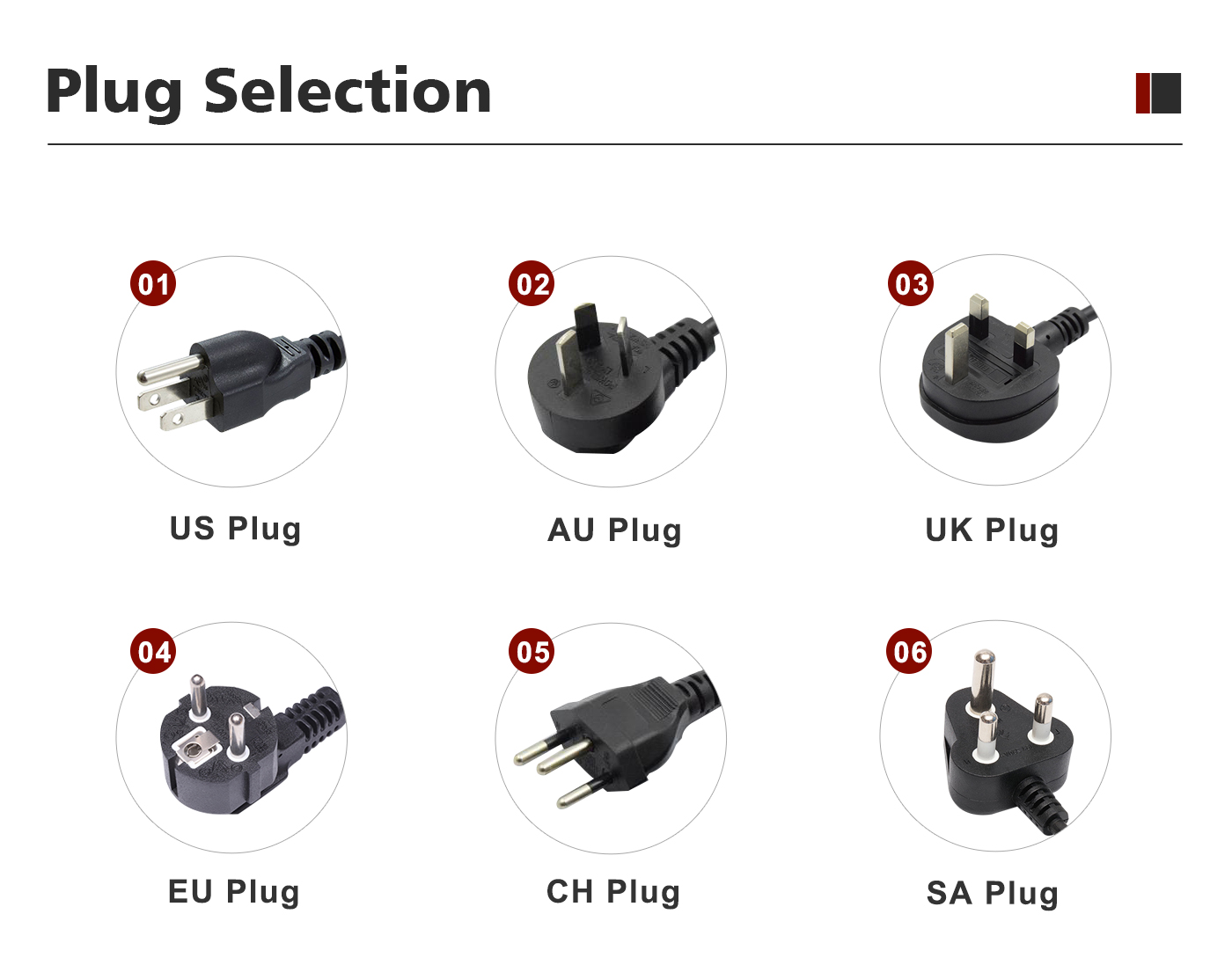

Power supply: | 110V-240v 50Hz/60Hz |
Effect: | full-color animation laser, using high-speed galvanometer scanning technology, design broken pen, flash, rotation, rolling, moving, stretching,Zoom, gradually painting, speed, color and other effects, with pattern size adjustment function, built-in beam and animation pattern, do beam animation, laser advertising, laser projection |
Application: | Outdoor show, outdoor advertising, outdoor scenic parks, outdoor roofs, etc.. |
Warranty: | 2 year |

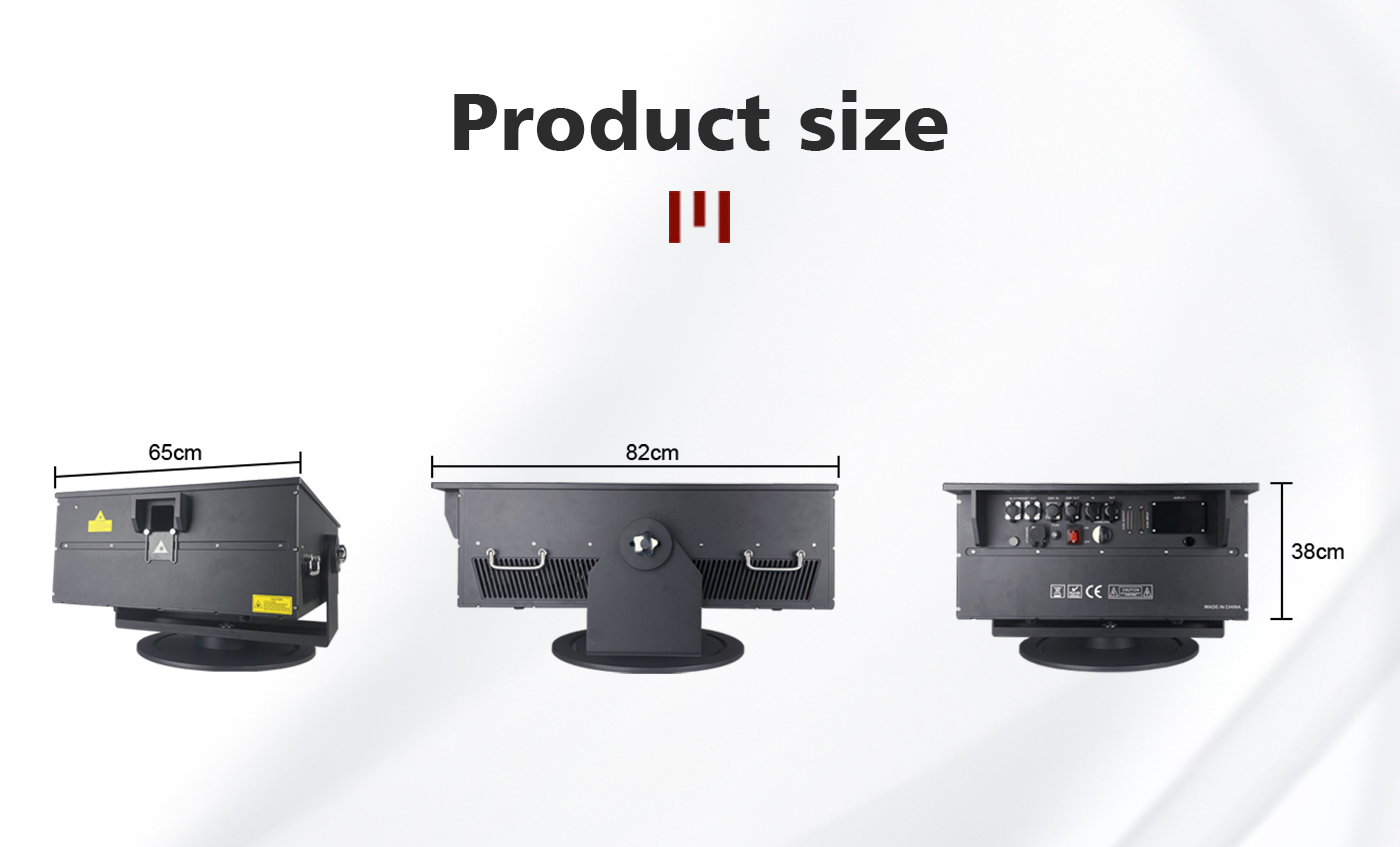

Product Size: | 82*38cm Net weight: 120kgs |
flightcase size: | 95* 110*70cm Gross weight: 145KGS |
