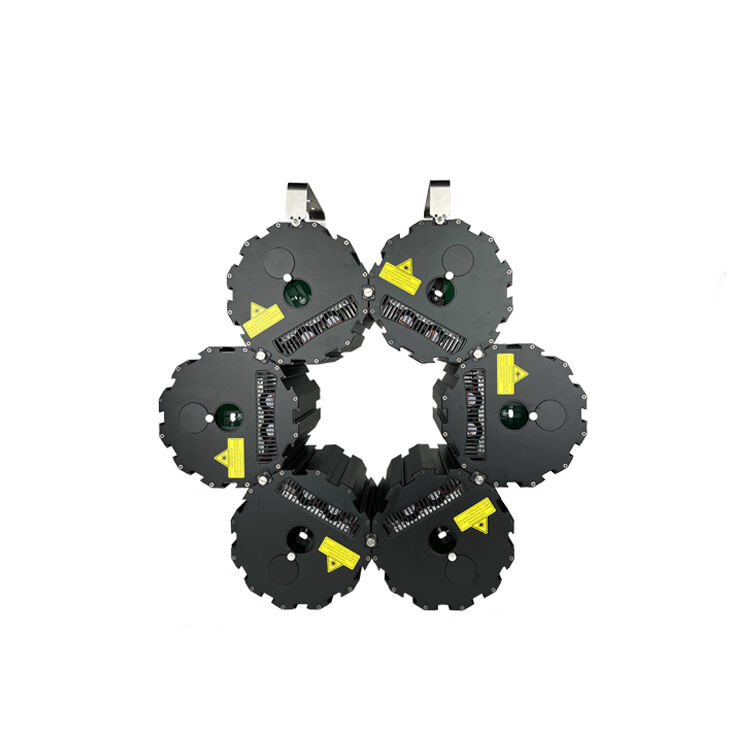

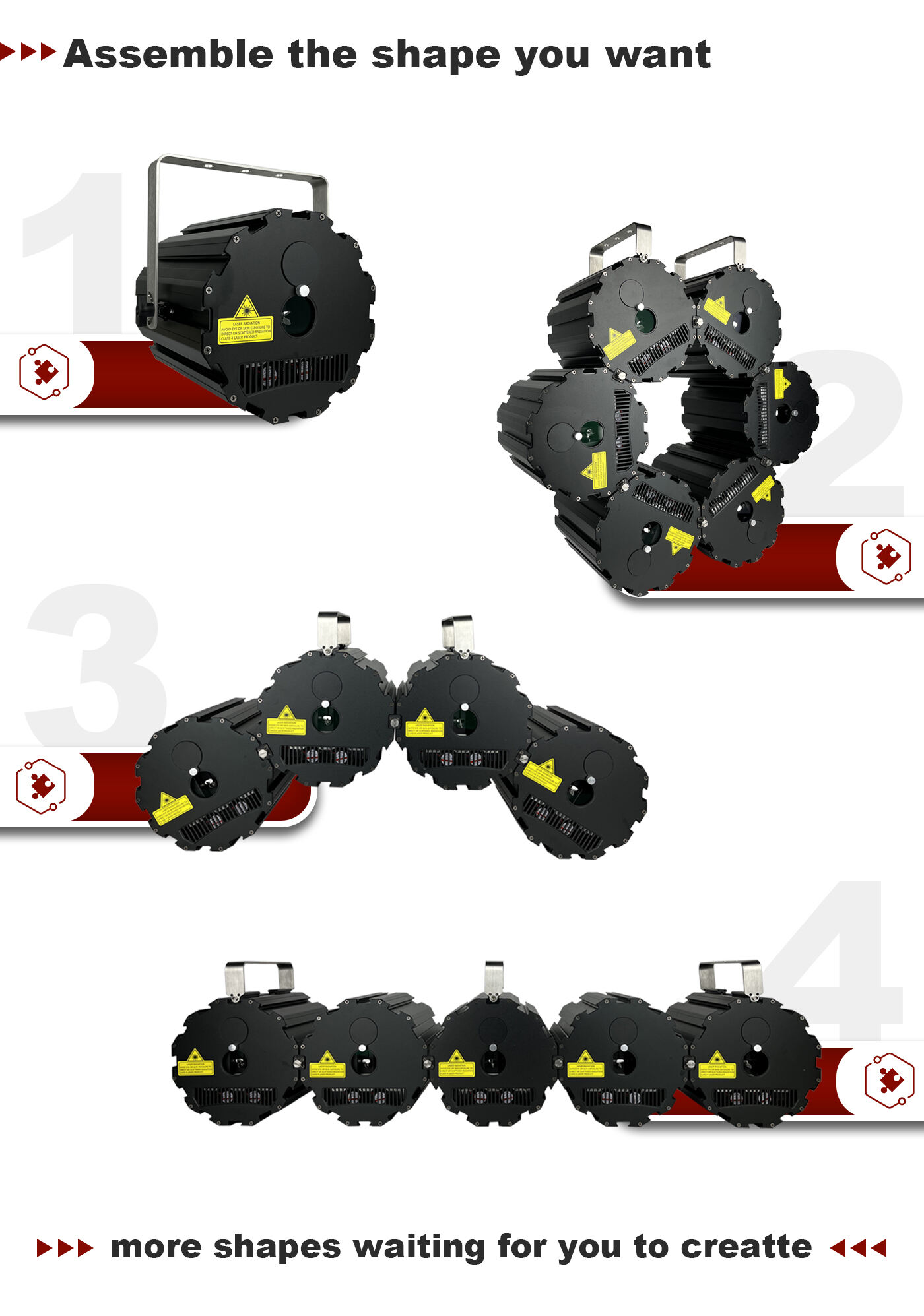

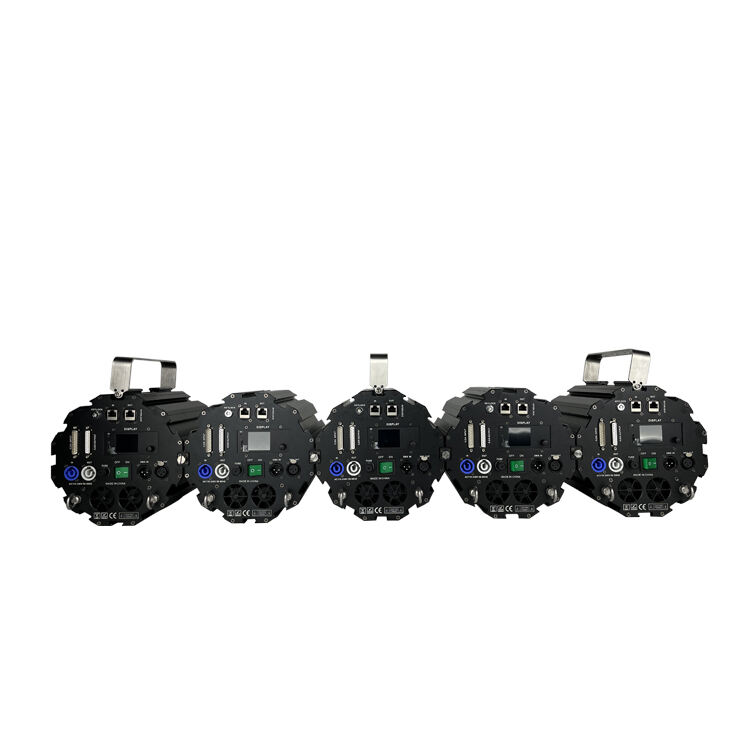

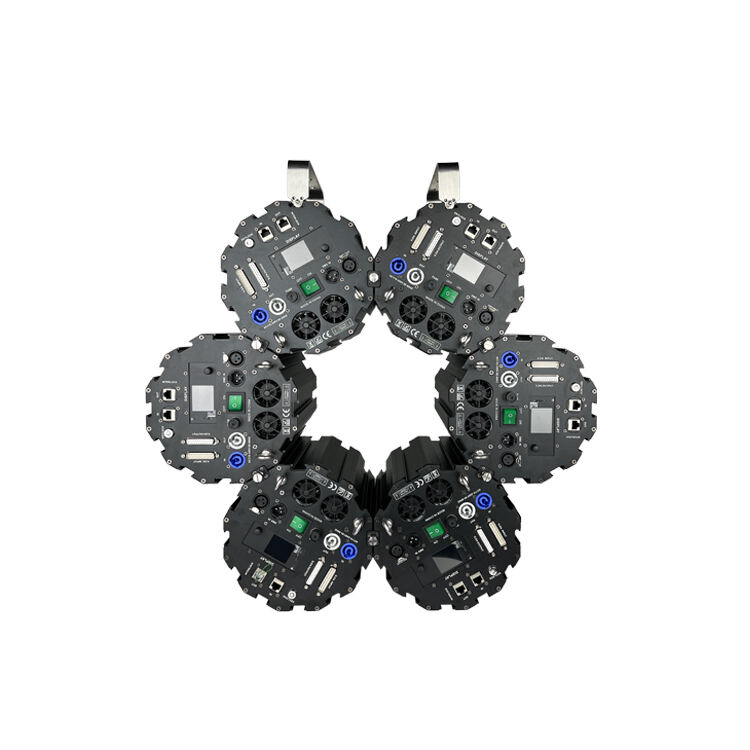

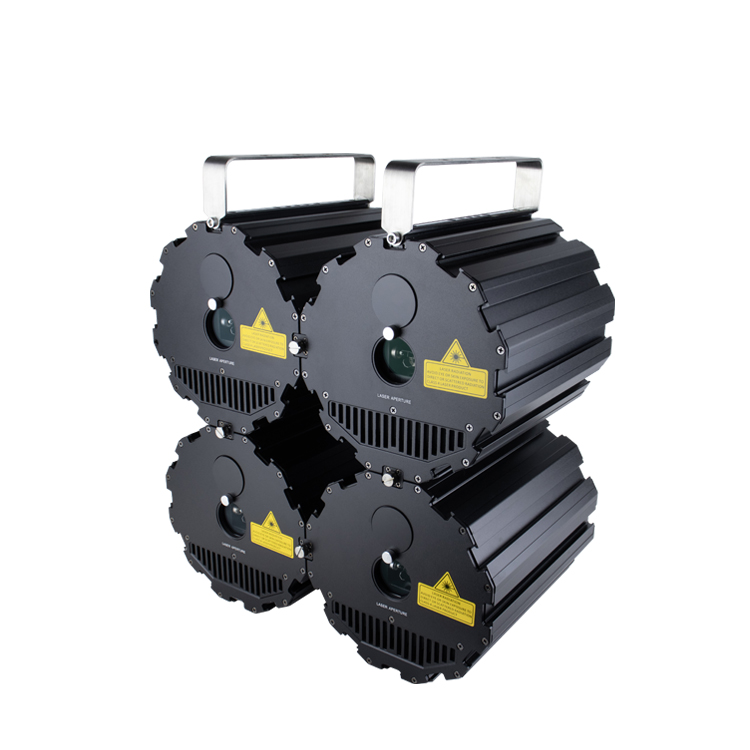

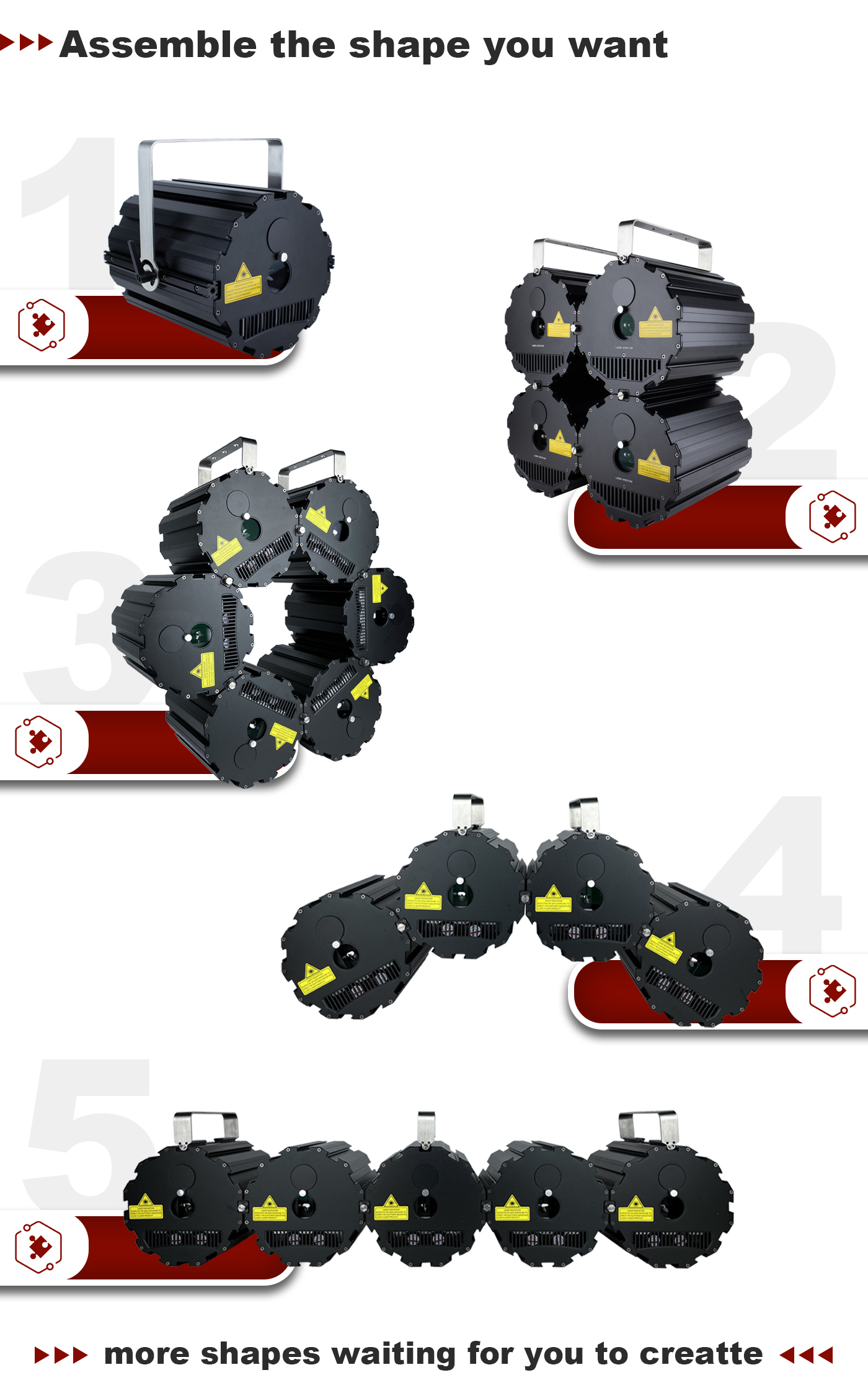

Feature ：It can be freely spliced and used separately. Layouts can be made according to different scenarios
| Laser power: | 10W [Red: 3W 638nm; Green: 3W 520nm; Blue: 4W 445nm] |

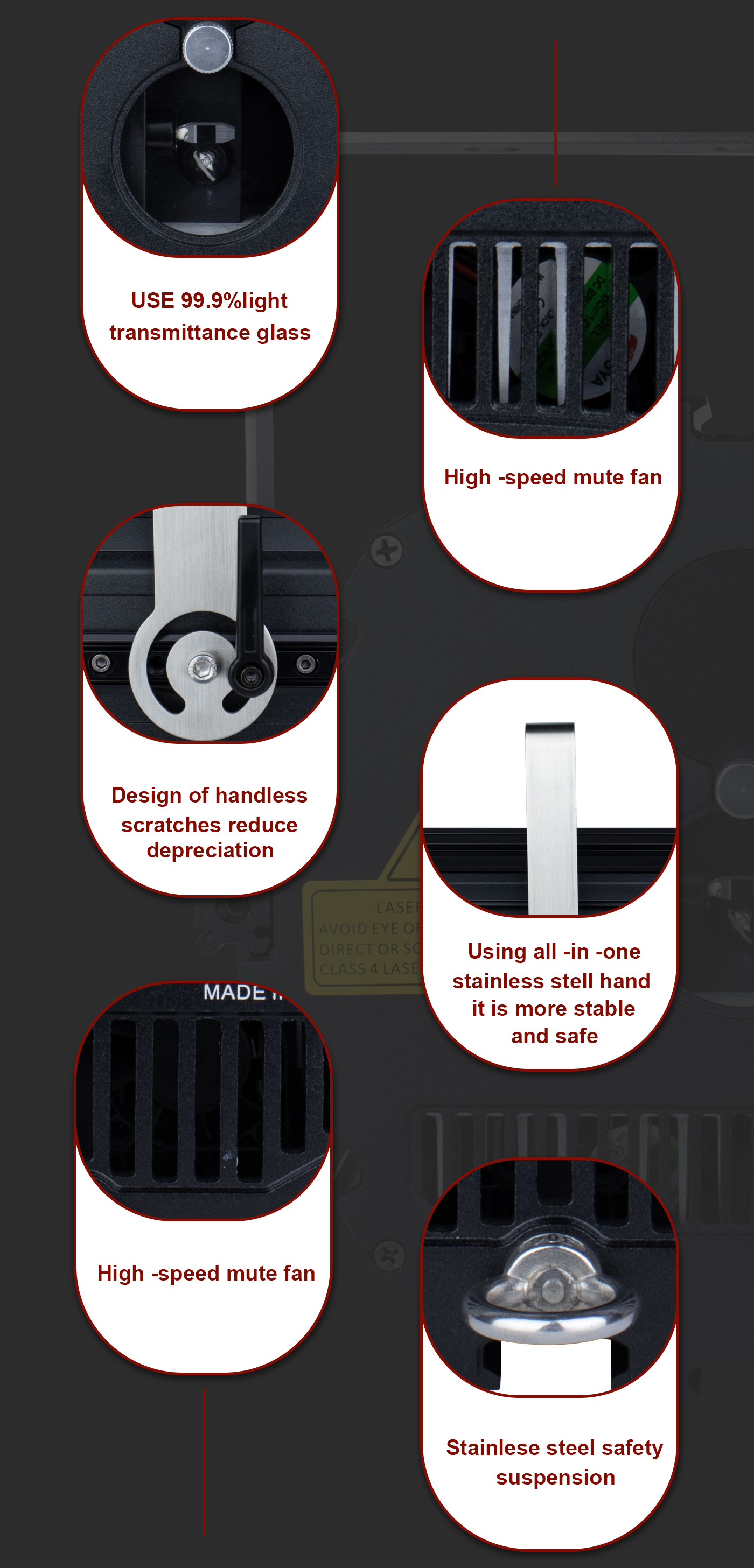

| Cooling method: | the whole machine is cooled by air cooling |
| Control signal mode: | TTL/analog automatic switching |
| Modulation voltage: | ≦30K |
| Laser divergence angle: | <1.2mrad (full angle) |
| Laser spot size: | 3*6.5mm at the light outlet |
| Galvanometer: | AT35S 35kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm) |
| Scanning angle: | up to 60° |
| Laser service life: | ≥10000 hours (maintain the test results in a constant temperature environment) |
| Laser class: | Class IV |
| IP rate： | IP54 |

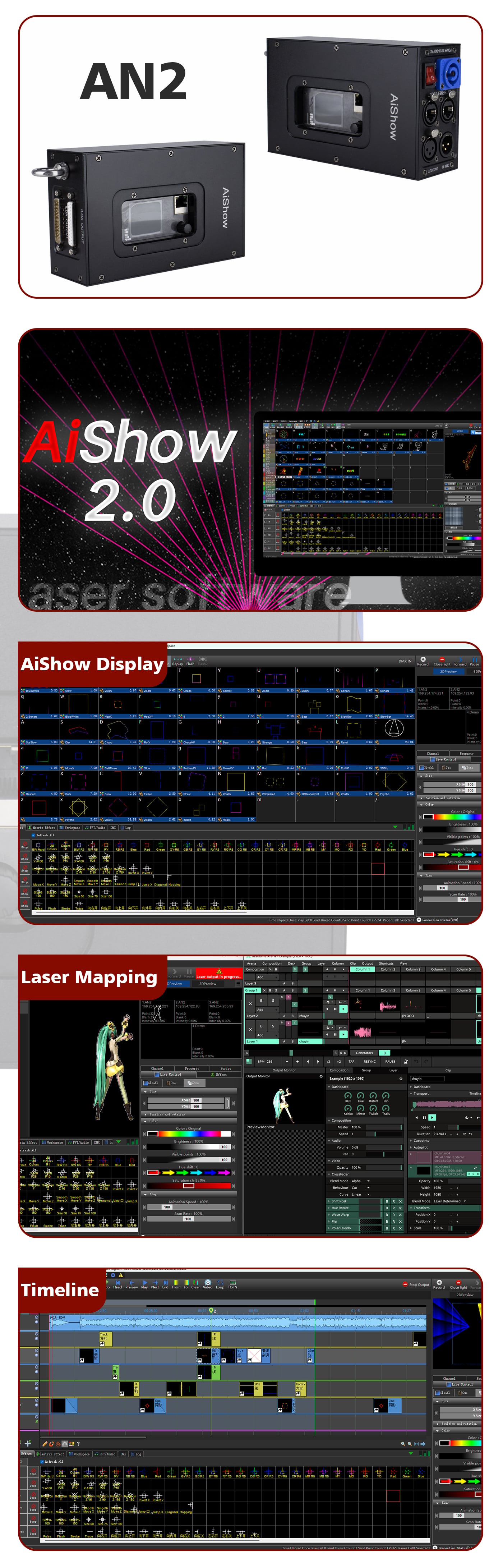

| Control mode: | SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels (with RDM), master/slave mode, ILDA software control |

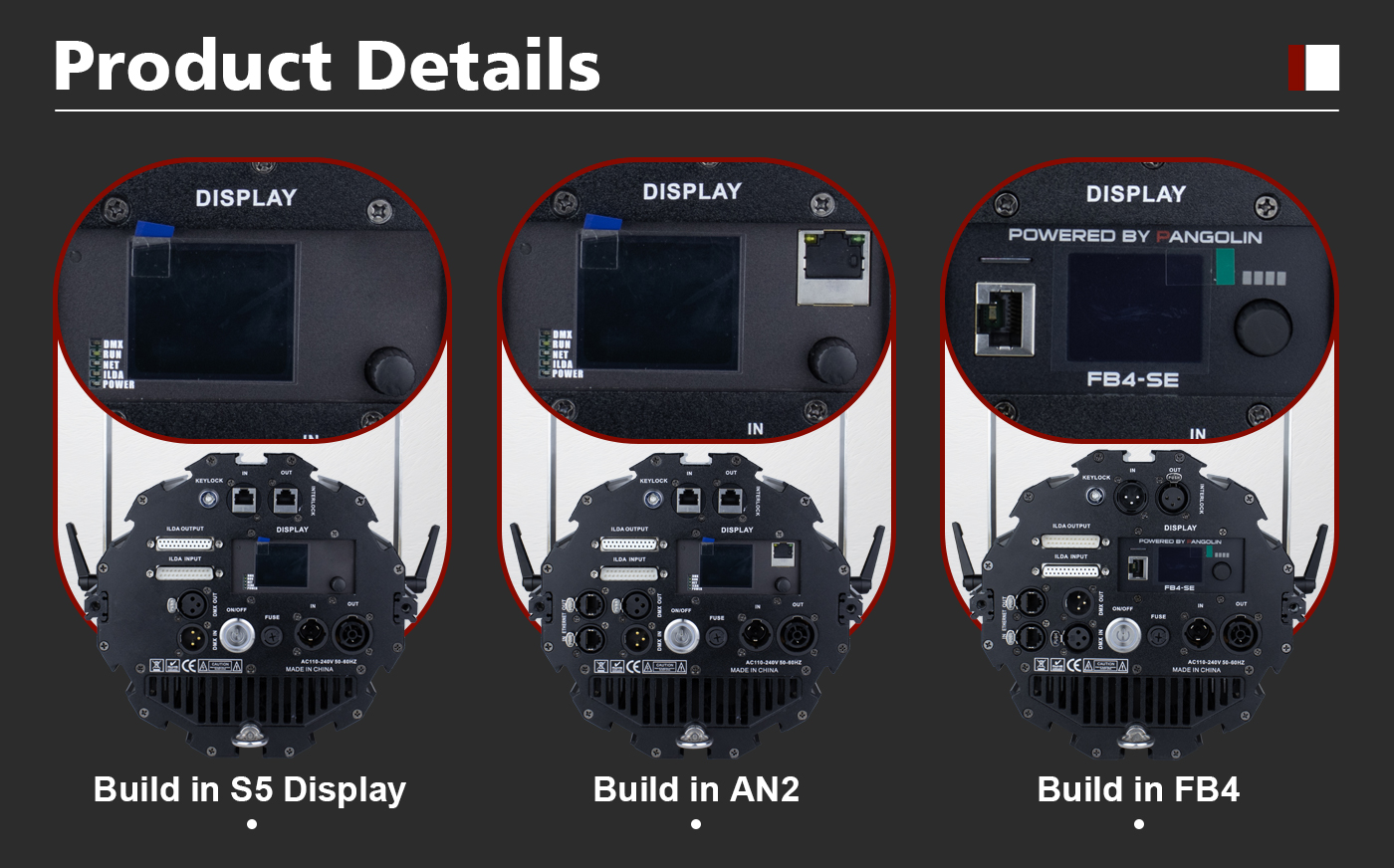

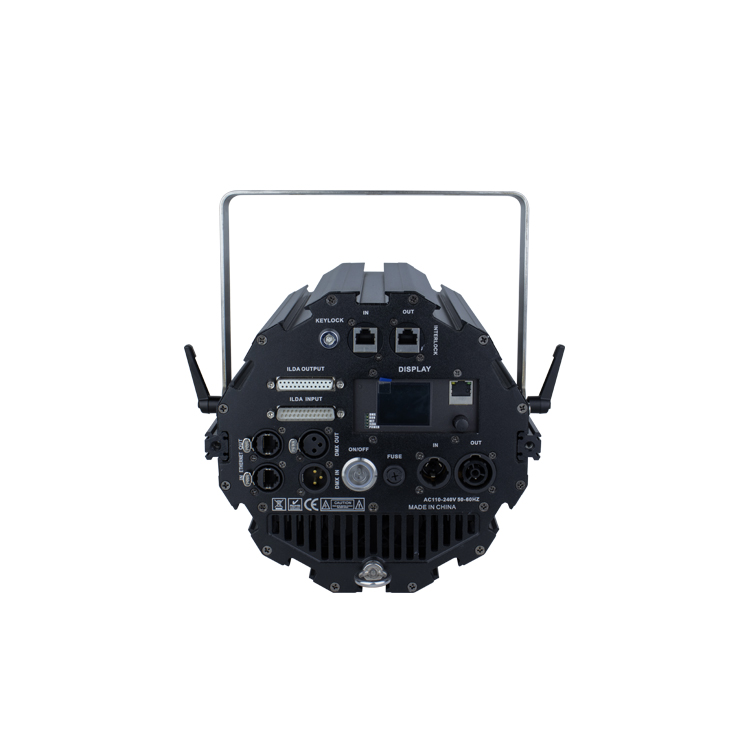

| Back Controls: | AT-S5 LCD, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in/out, fuse |
| Working temperature: | -10C-45°C |
| Voltage: | 100-250V |
| Rated power: | 100W |

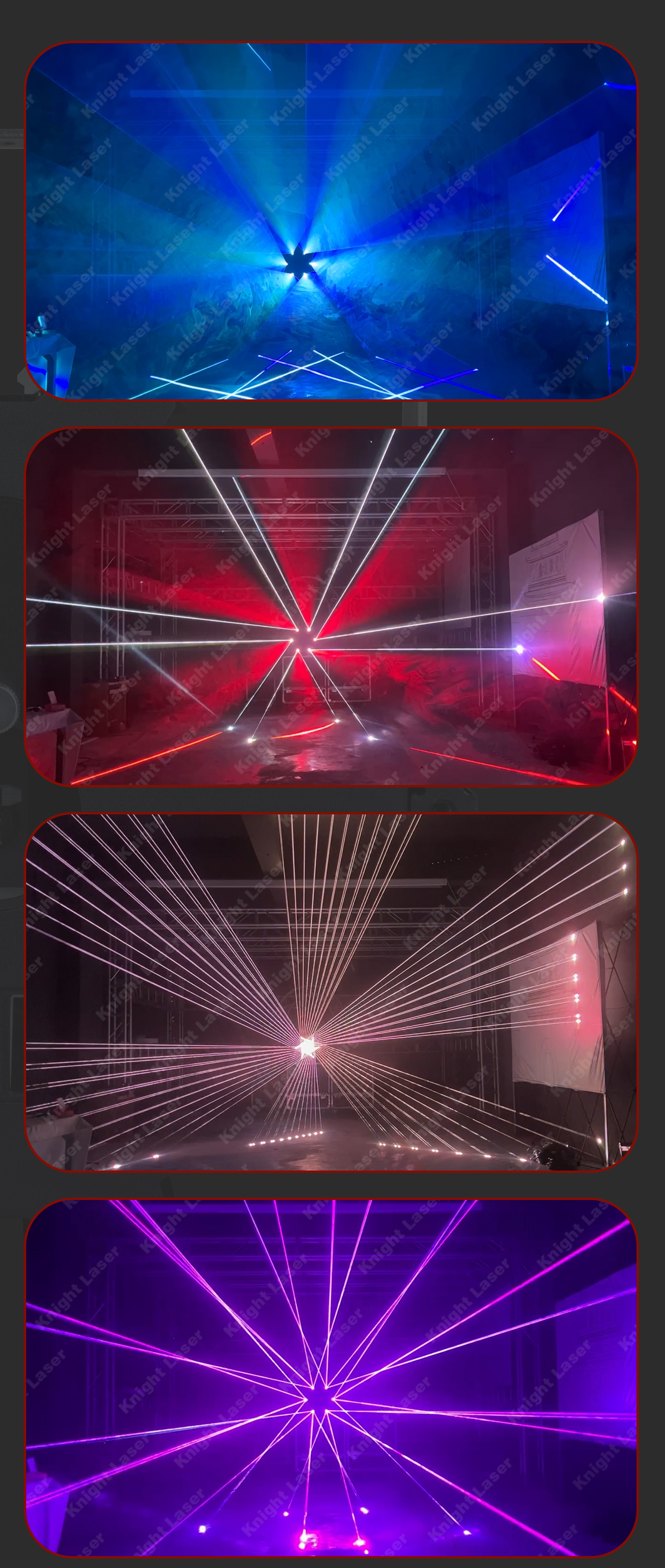

| Applicable: | stage, DJ, event disco, club, bar, etc |
| Warranty: | 1 years |

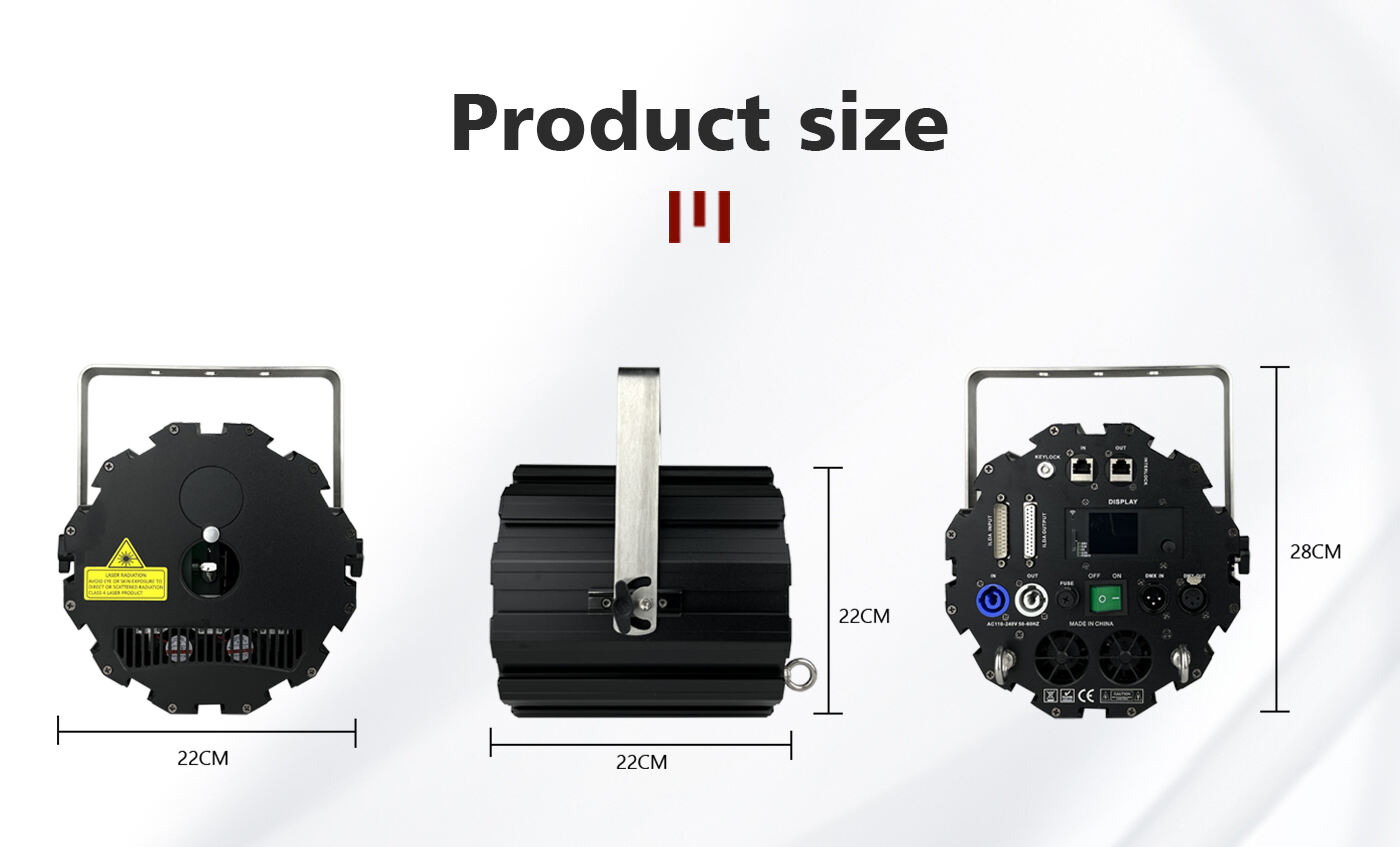

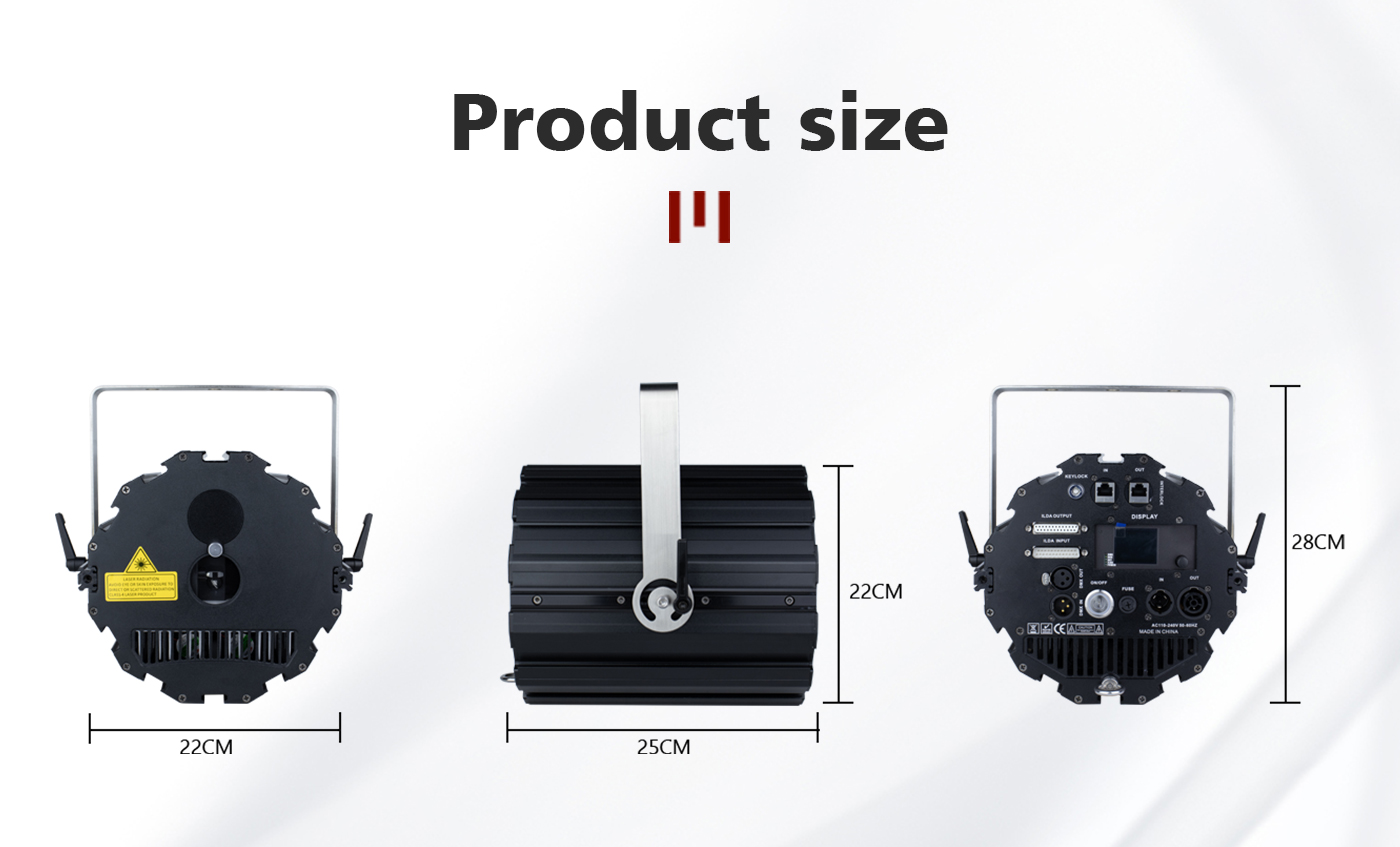

| Size: | 22*22*22cm/28cm (L*W*H) |
| Net Weight: | 5kgs |

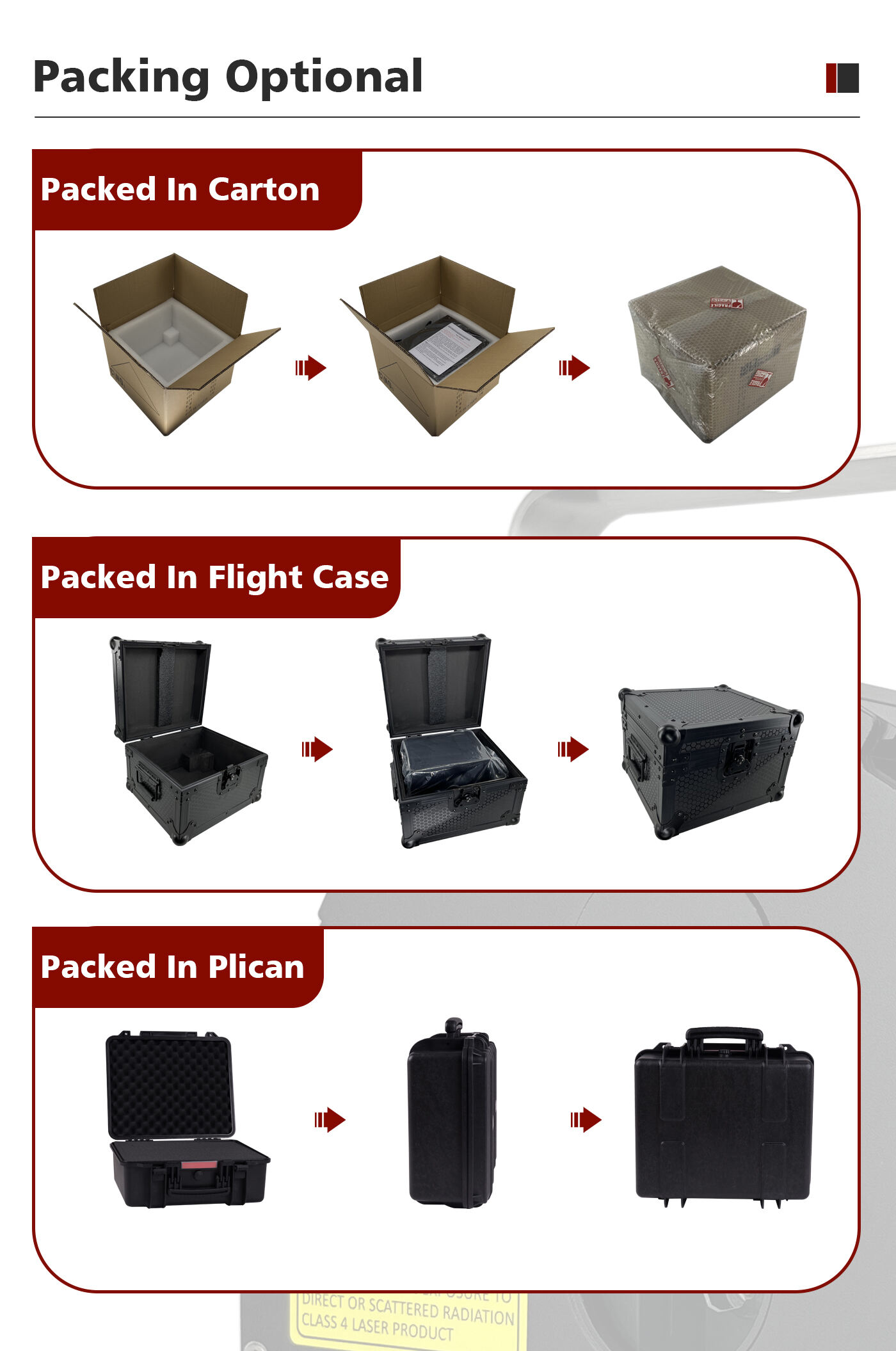

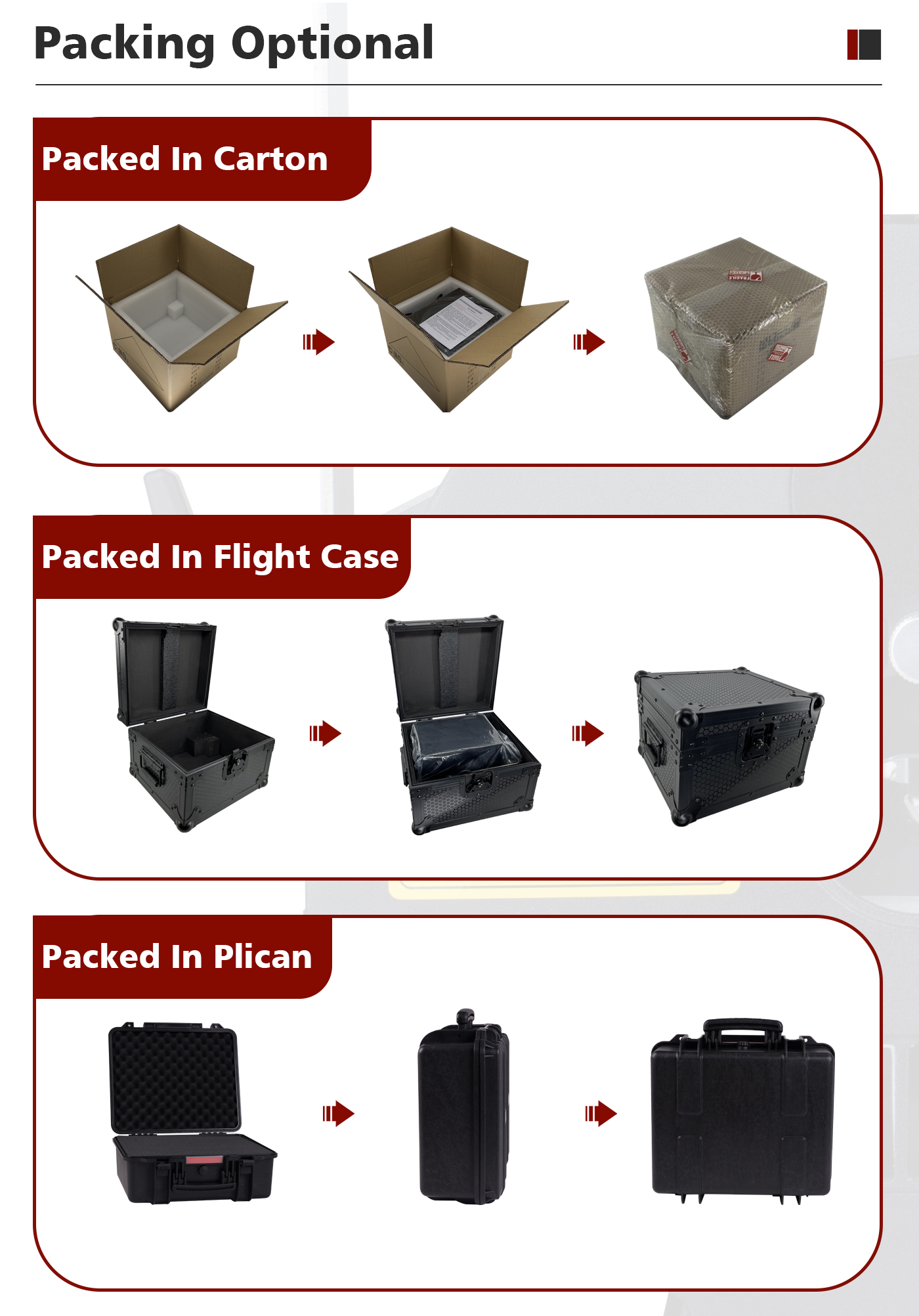

| Carton Packing: | 35*27*29cm |
| Gross Weight: | 6.5kgs |
| 2IN1 carton： | 57*37*32cm 15kgs |
| 4in1 flightcase size: | 69*69*43cm |
| Gross weight: | 45KGS |
