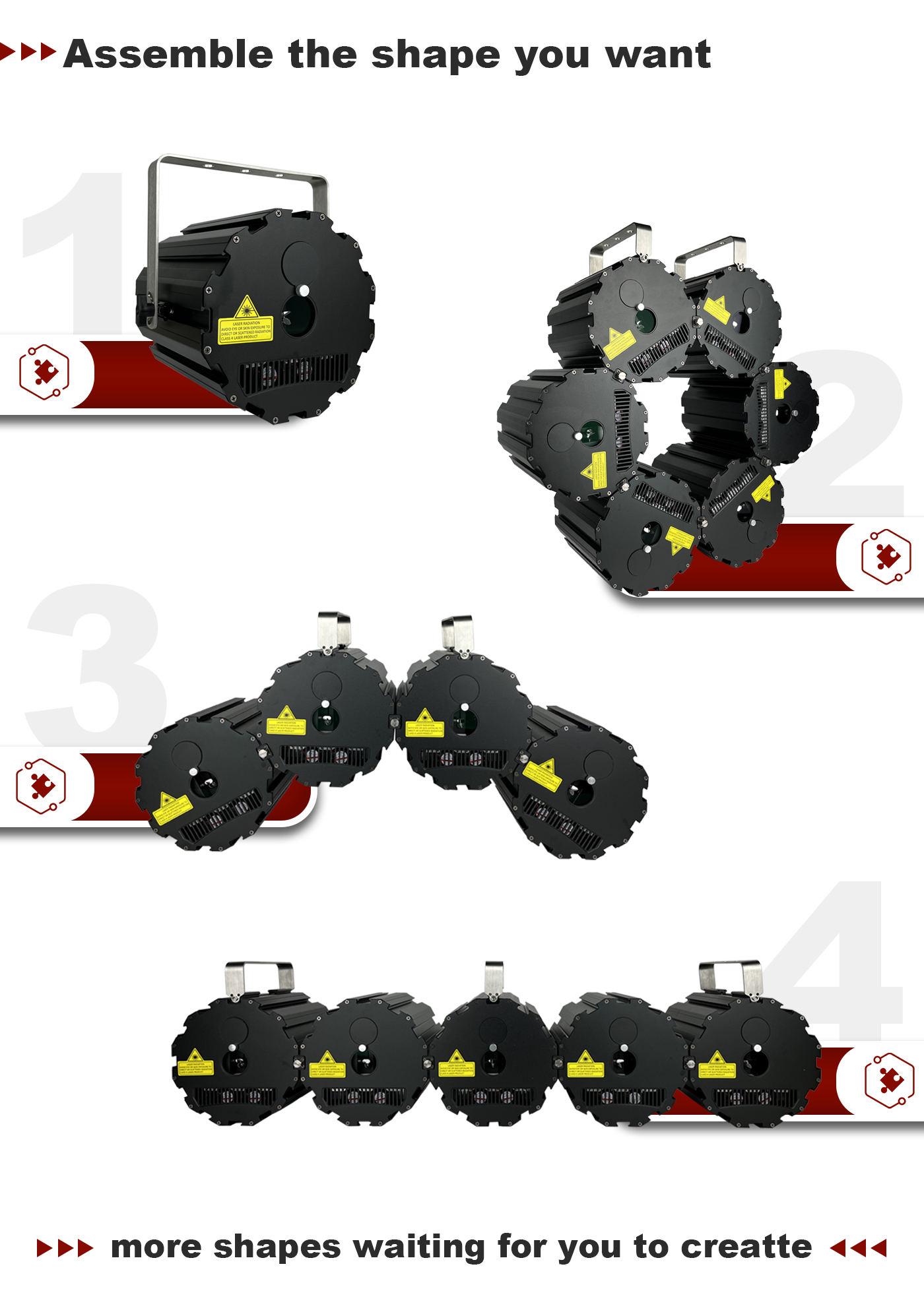

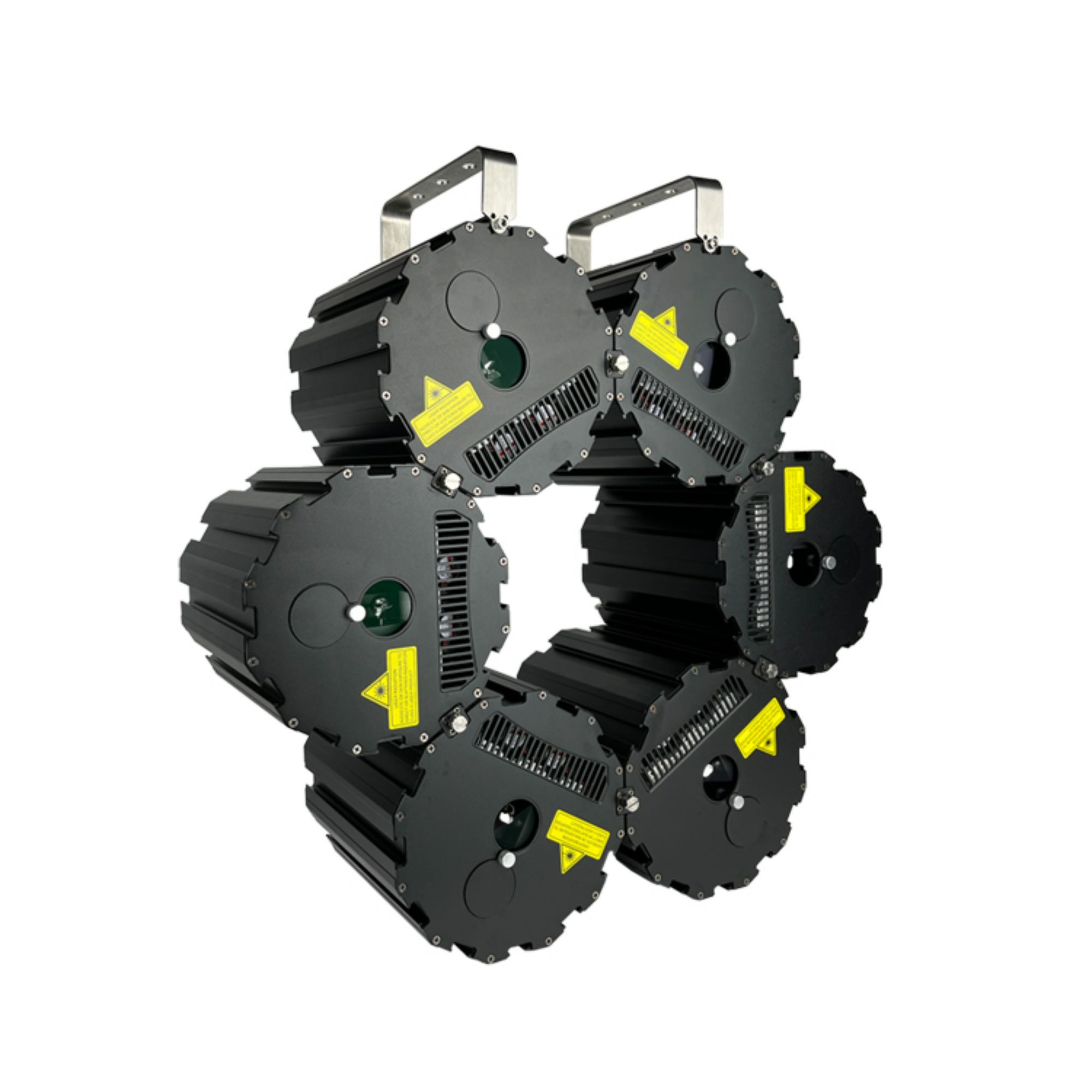

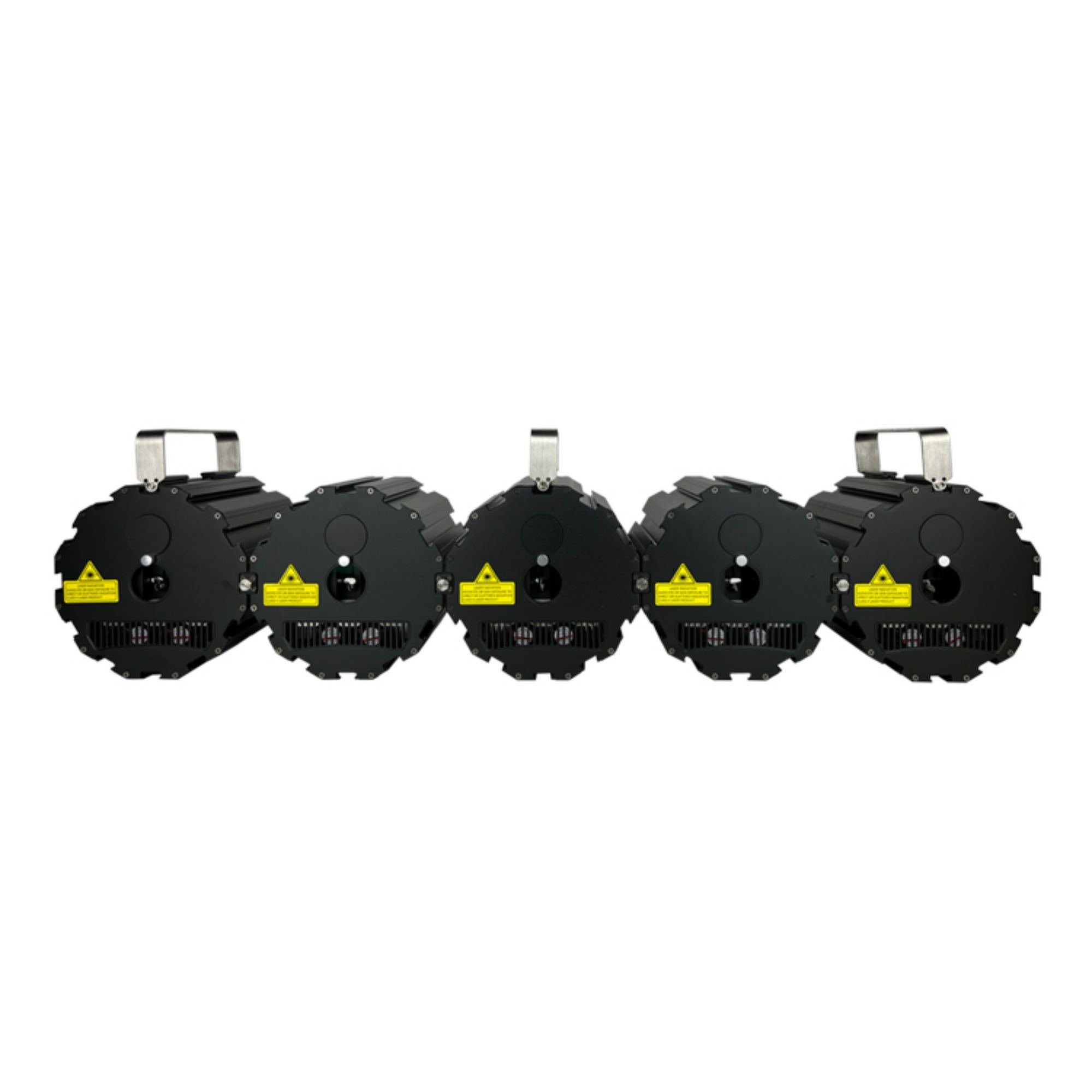

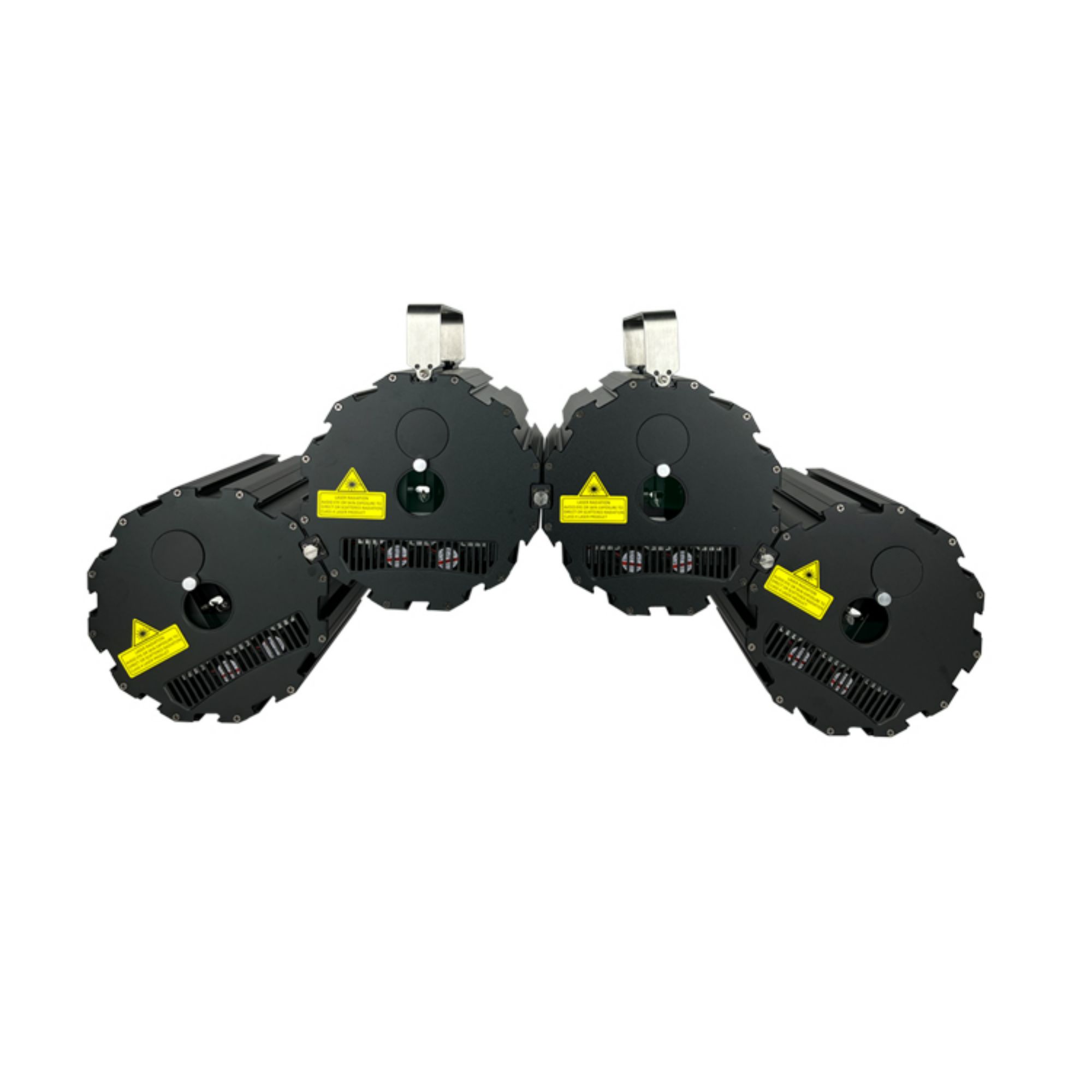

Feature :It can be freely spliced and used separately.
Layouts can be made according to different scenarios
Laser power: | 3w[ R:700mw 638nm;G:800mw 520nm; B:1.5W 445nm] |
Cooling method: | the whole machine is cooled by air cooling |
Control signal mode: | TTL/analog automatic switching Modulation |
voltage: | ≦30K |
Laser divergence angle: | <1.2mrad (full angle) |
Laser spot size: | 3*6.5mm at the light outlet |
Galvanometer: | AT25kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm) |
Scanning angle: | up to 60° |
Laser service life: | ≥10000 hours (maintain the test results in a constant temperature environment) |
Laser class: | Class IV |
IP rate: | IP54 |
Control mode: | SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels, master/slave mode, ILDA software control |

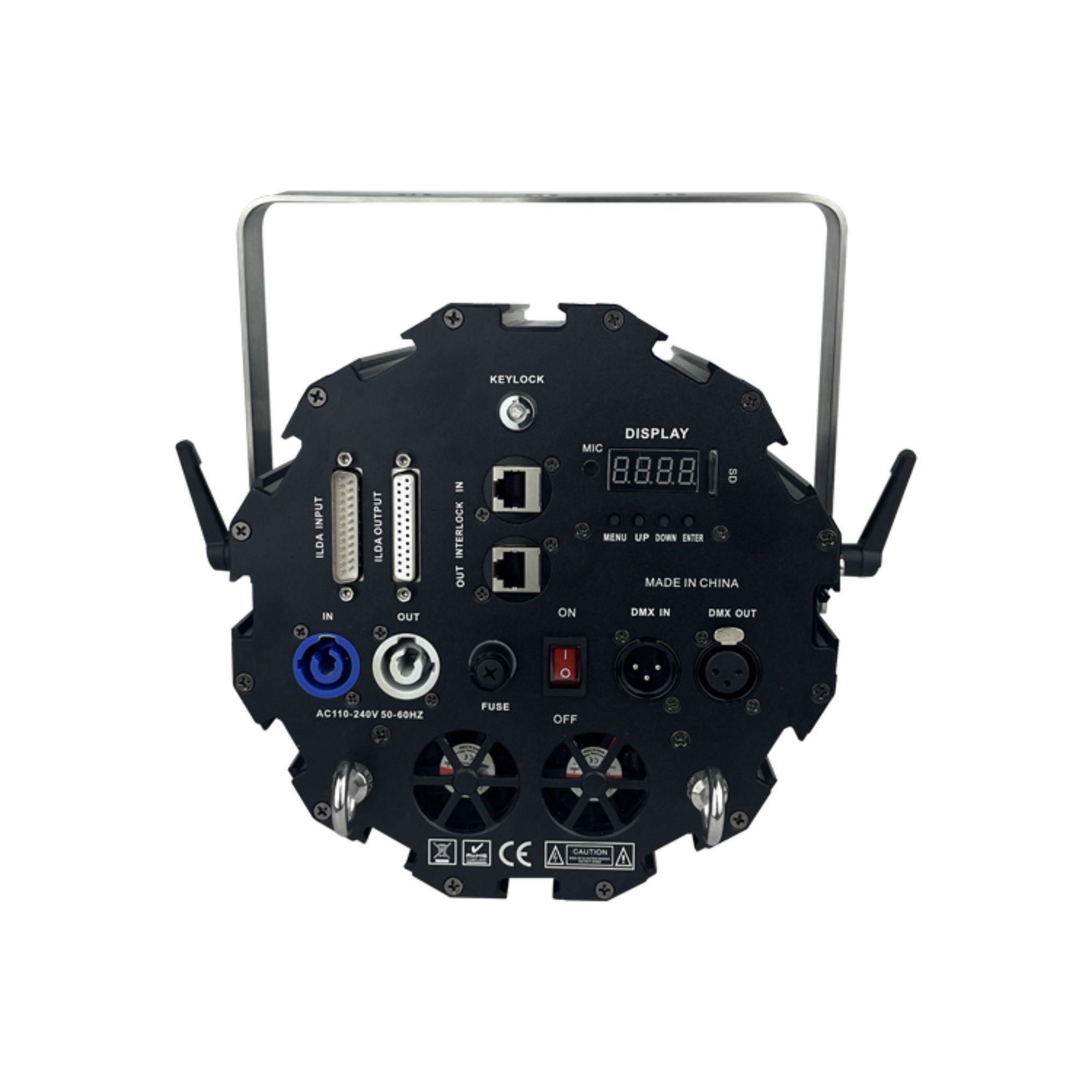

Back control: | AT-S2 digital display, 3 stitches 512 in/out, DB25 in/out, power input/output, fuse |
Working temperature: | -10C-45°C |

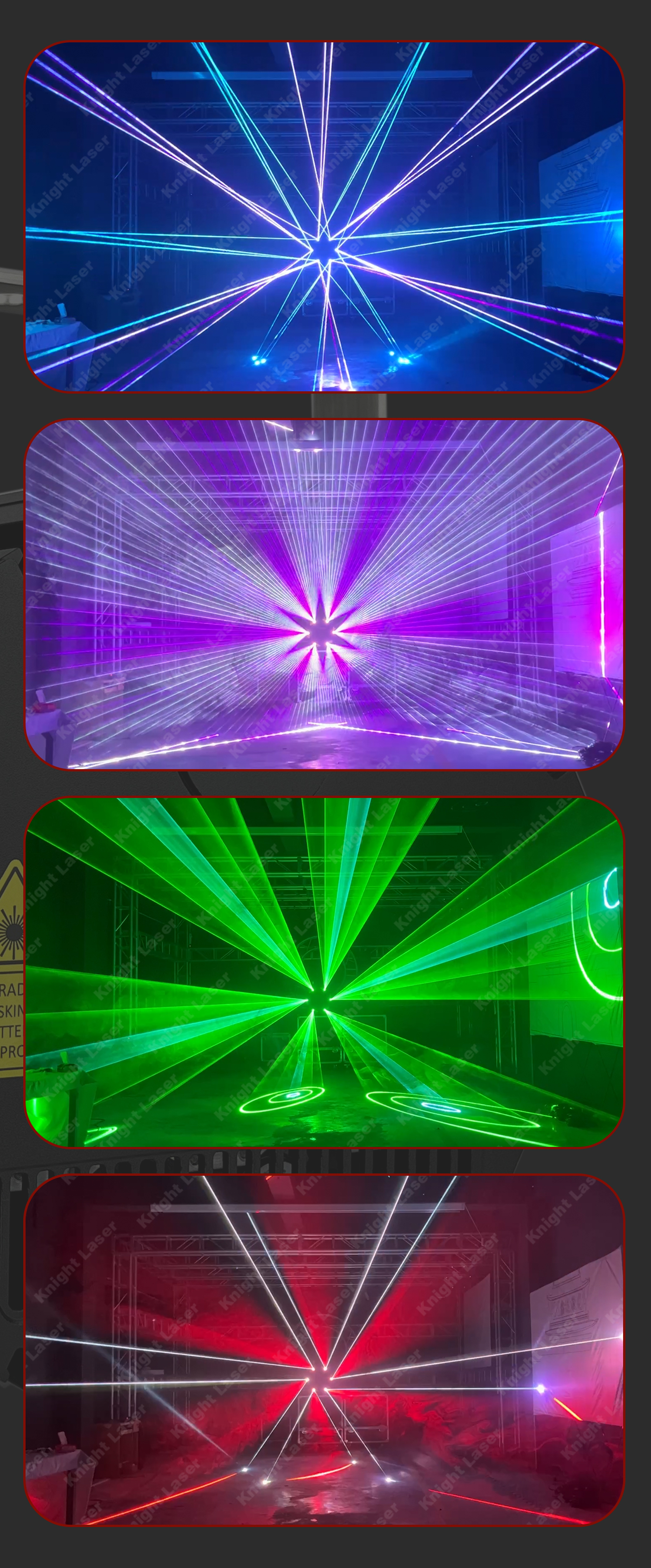

Applicable: | stage, DJ, event disco, club, bar, etc |
Rated power: | 100W |
Warranty: | 1 years |

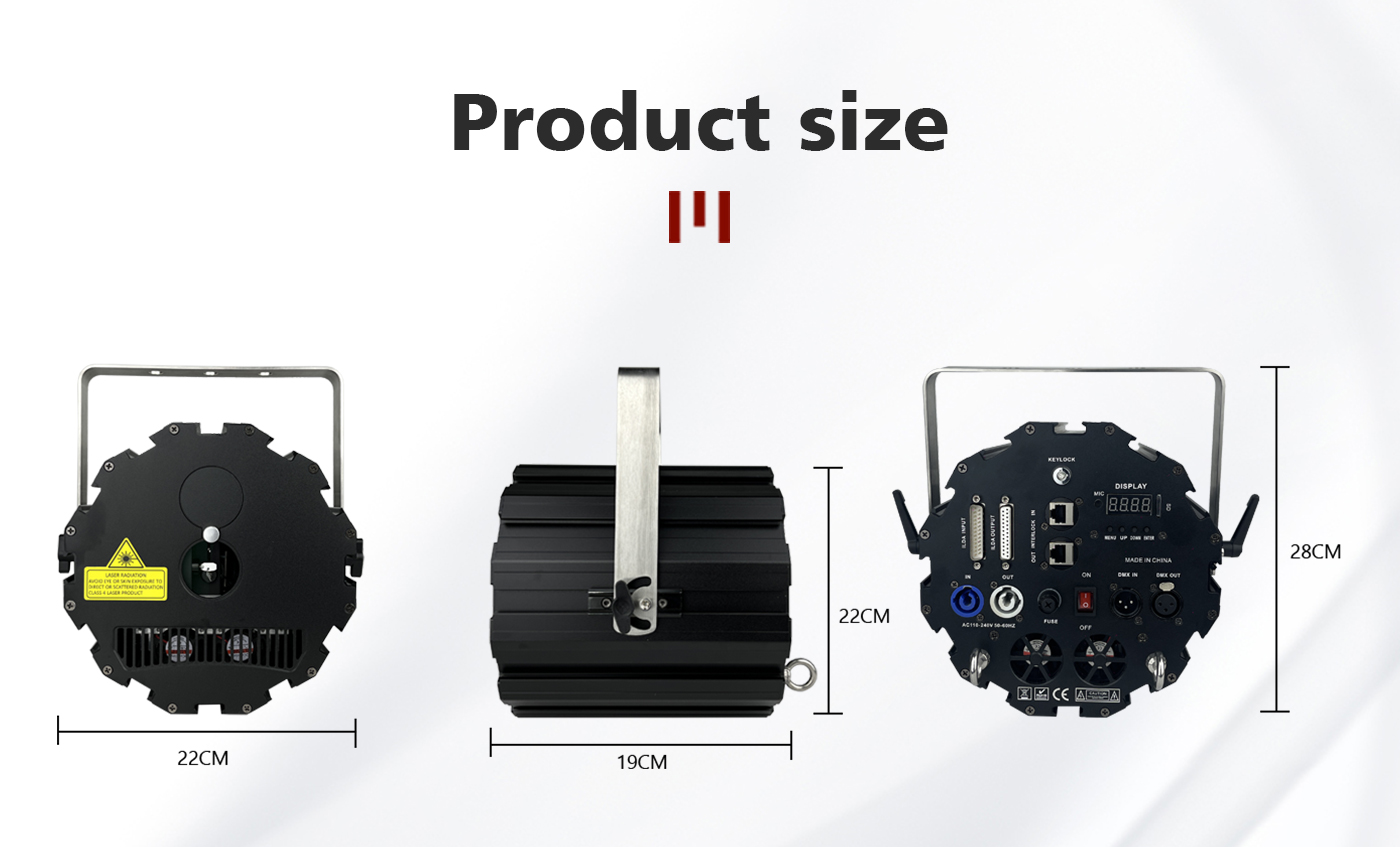

Size: | 22*19*22cm/28cm (L*W*H) |
Net Weight: | 4kgs |
Carton Packing: | 35*27*29cm Gross Weight: 5.5kgs |
2IN1 carton: | 57*37*32cm 14kgs |
4in1 flightcase size: | 69*69*43cm Gross weight: 45KGS |
