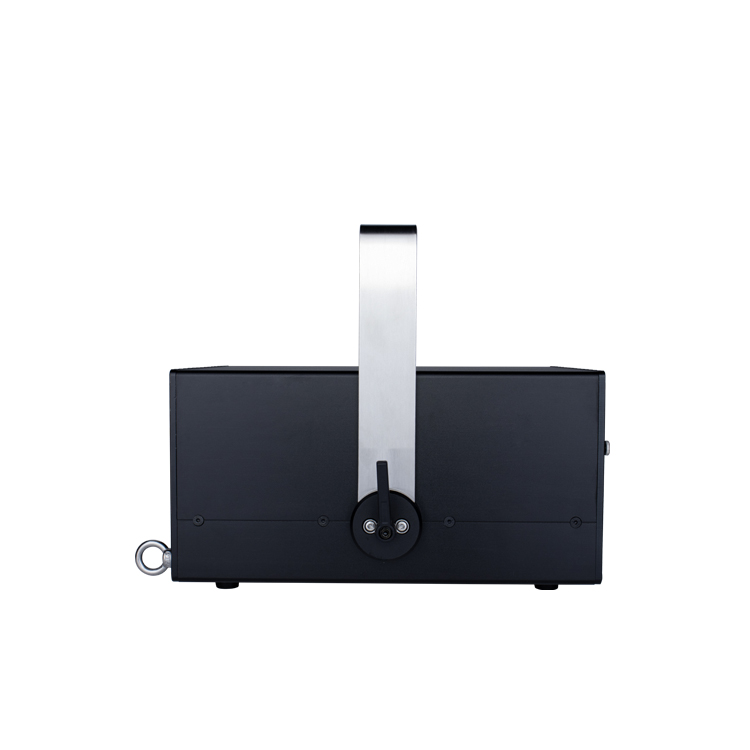

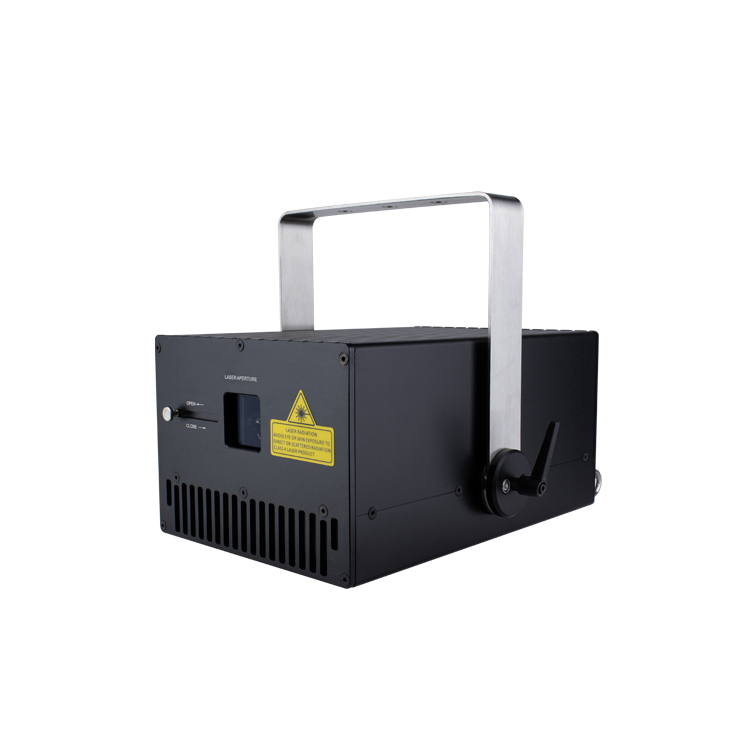

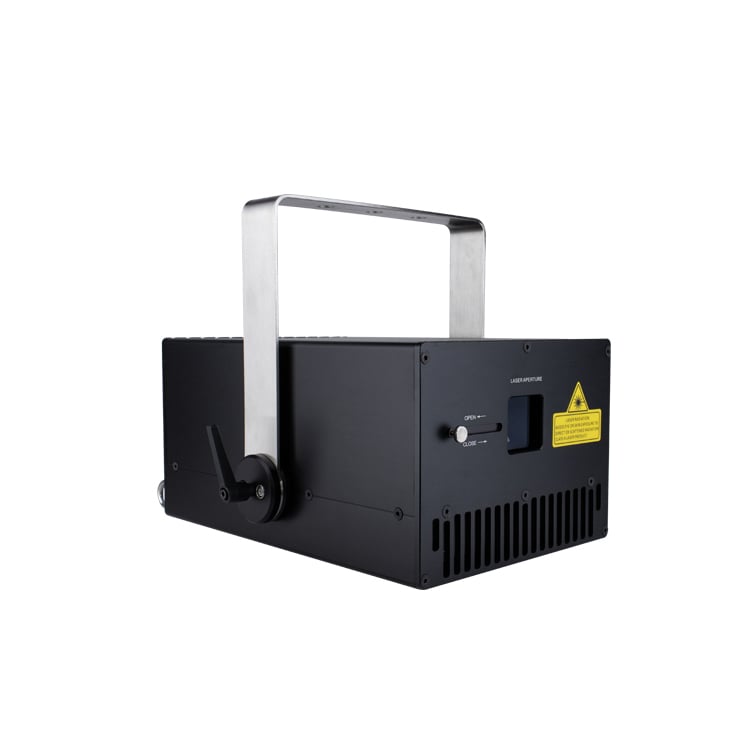

Max 15W PRO

Features:
1. Private model products

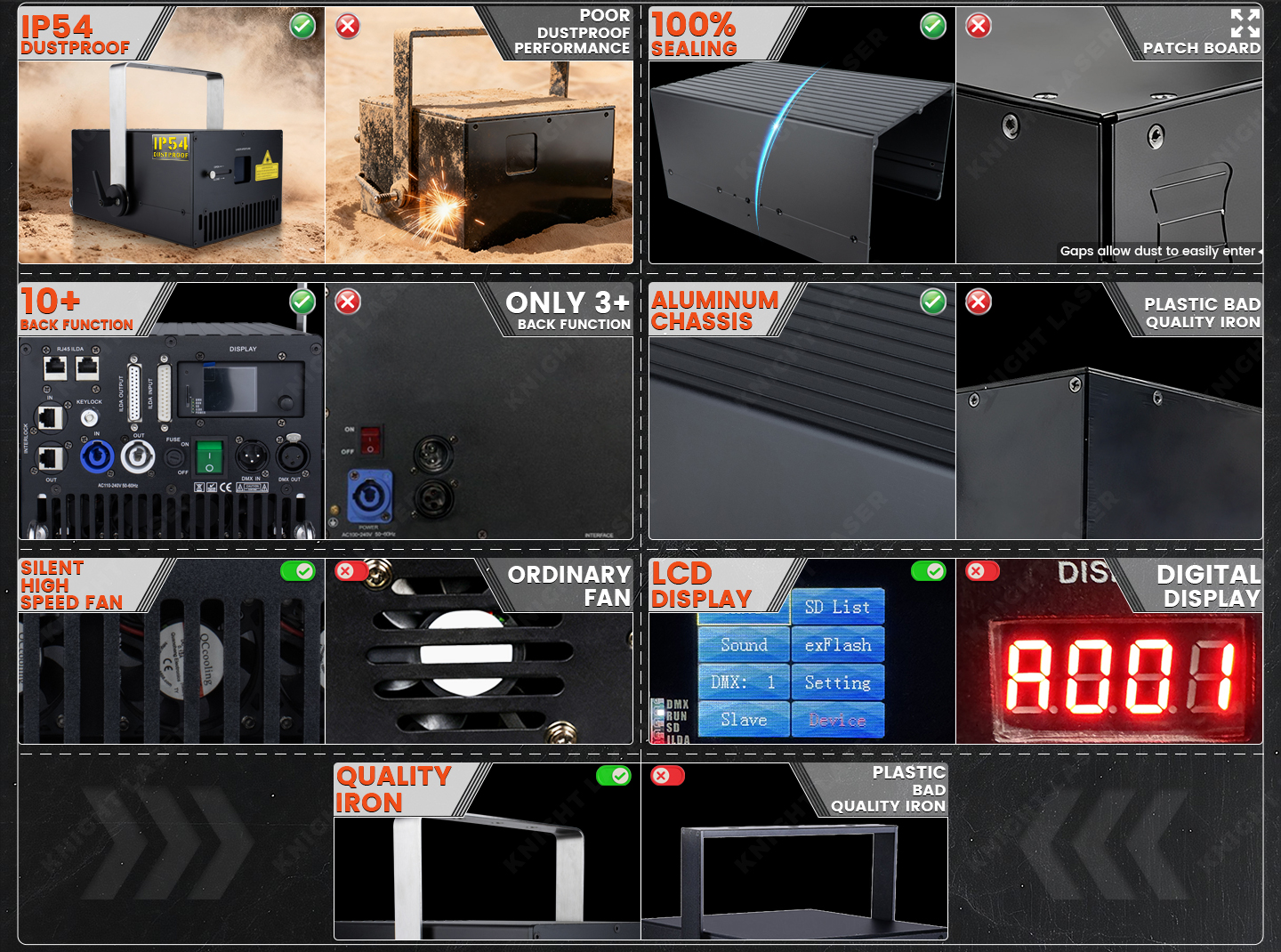

2. The sealing level reaches the IP54, and the first floor is completely sealed. In the use, the dust and smoke oil can be avoided into the chassis, so that the life and brightness of the extended laser can be extended.

3. The heat dissipation layer is on the 2nd floor. The overall heat sink is combined with the laser light source, and the heat dissipation area reaches 100%, which extend the life of the laser.

4.RGB Full Fiber Bean shaping - Full FAC RGB correction

Laser power 15W [Red: 5W 638nm; Green: 5W 525nm; Blue: 5W 455nm]
Cooling method The laser is cooled with TEC, and the whole machine is cooled by air cooling
Control signal mode TTL/analog automatic switching
Modulation voltage ≦100K
Laser divergence angle <0.8mrad (full -angle)
Laser spot size 5*6.2mm at the light outlet
Galvanometer 40kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm)
Scan angle up to 60°
Laser service life ≥10000 hours (test results in the constant temperature environment)
Laser level Class IV
IP rate IP54
Control mode SD (built-in more than 300 effects), sound control, automatic operation, DMX 18/27 channels (with RDM), master/slave mode, ILDA software control

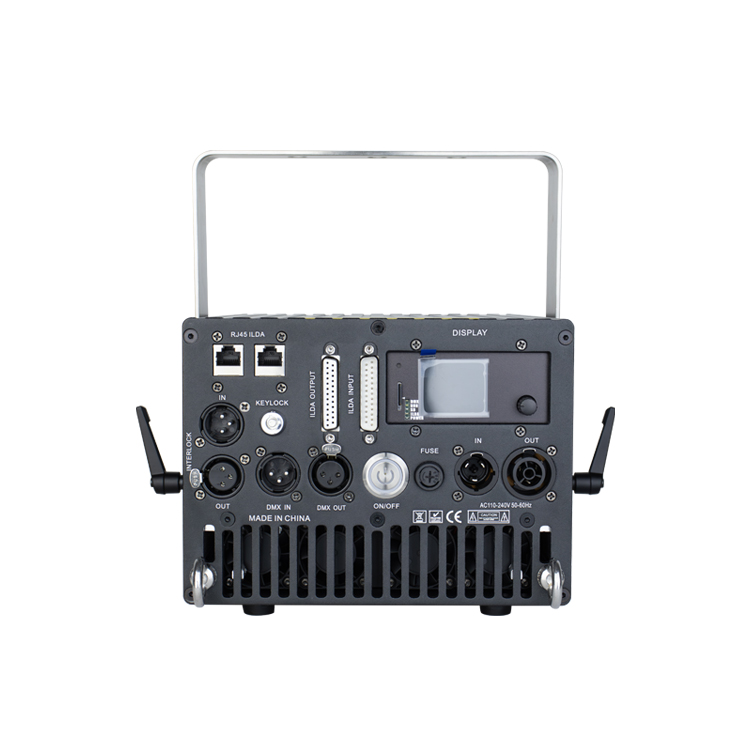

Back control AT-S5 LCD, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, power in/out, fuse
Work temperature -10C-45 ° C
Voltage 100-250V
Rated power 250W
Application Outdoor show, outdoor advertising, outdoor scenic parks, outdoor roofs, etc..
Warranty 2 year

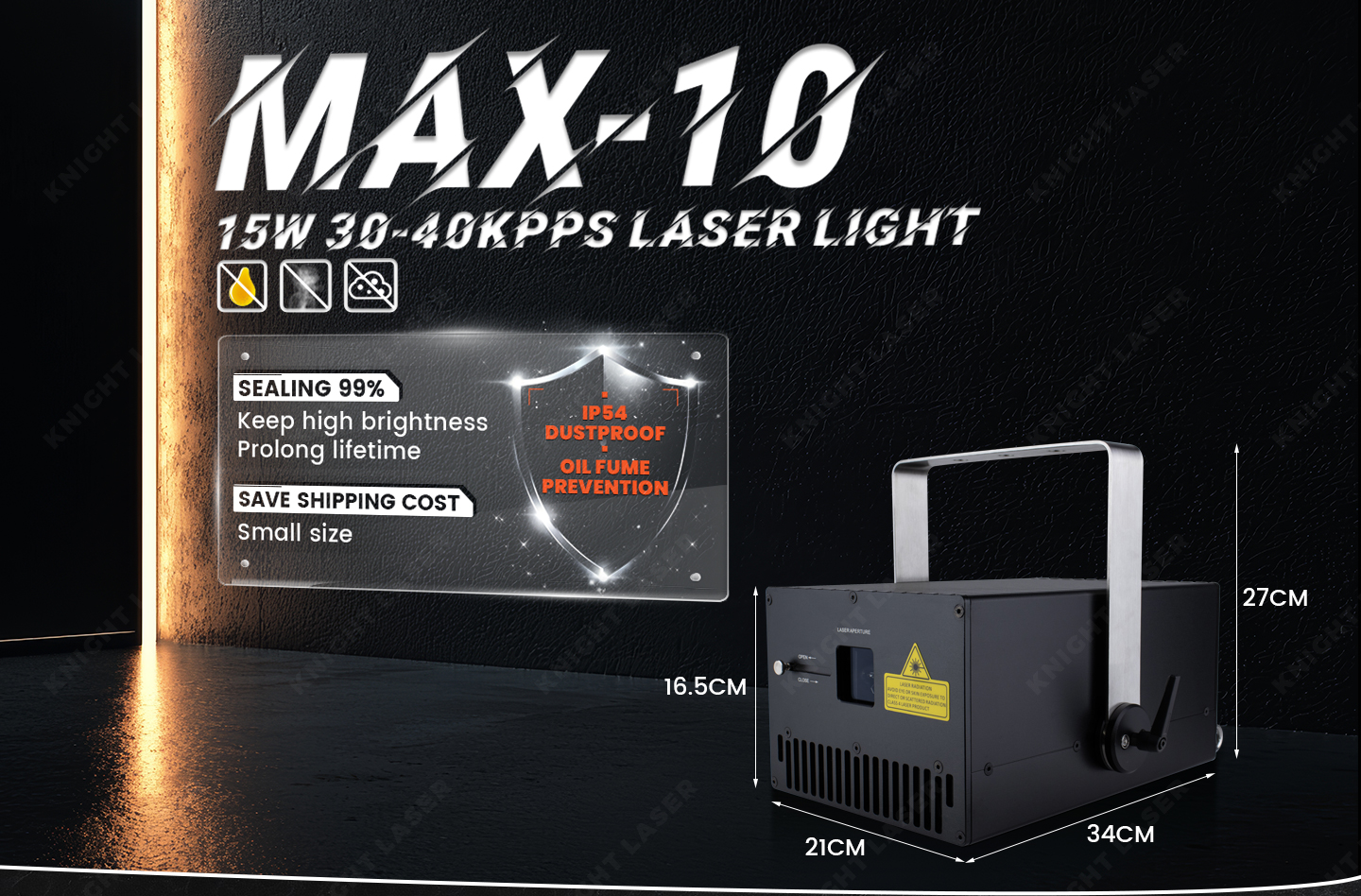

Size 21*34*16.5cm/27cm (L*W*H) Net Weight: 10kgs

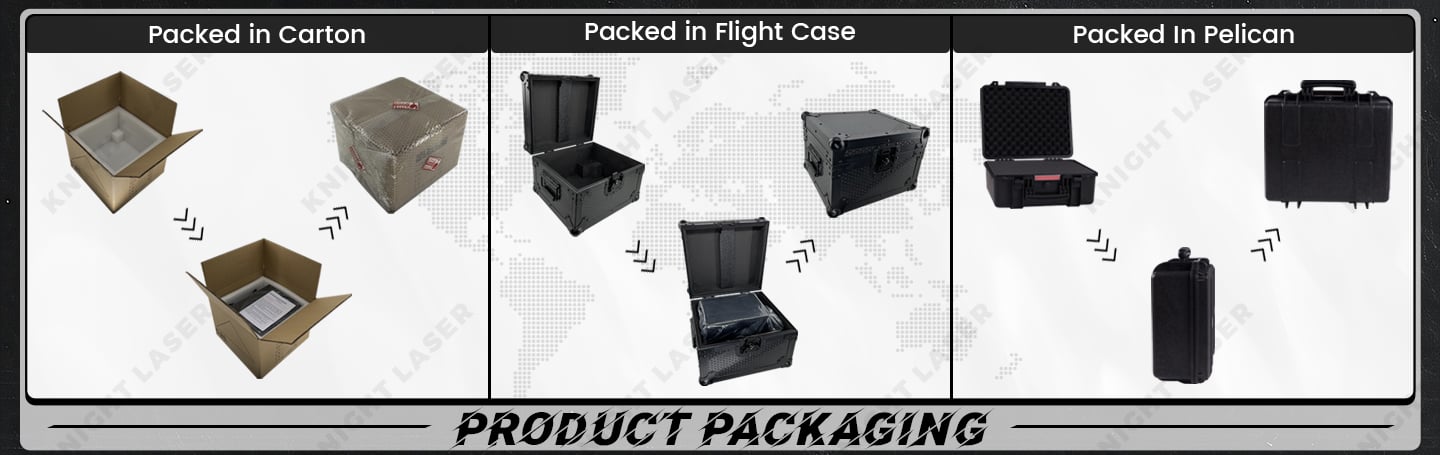

Carton Packing 45*31*22cm Gross Weight: 11kgs
2IN1 carton 36*33*49cm  15kgs
Flightcase size 45*36*23cm Gross weight: 16kgs
