Product features:

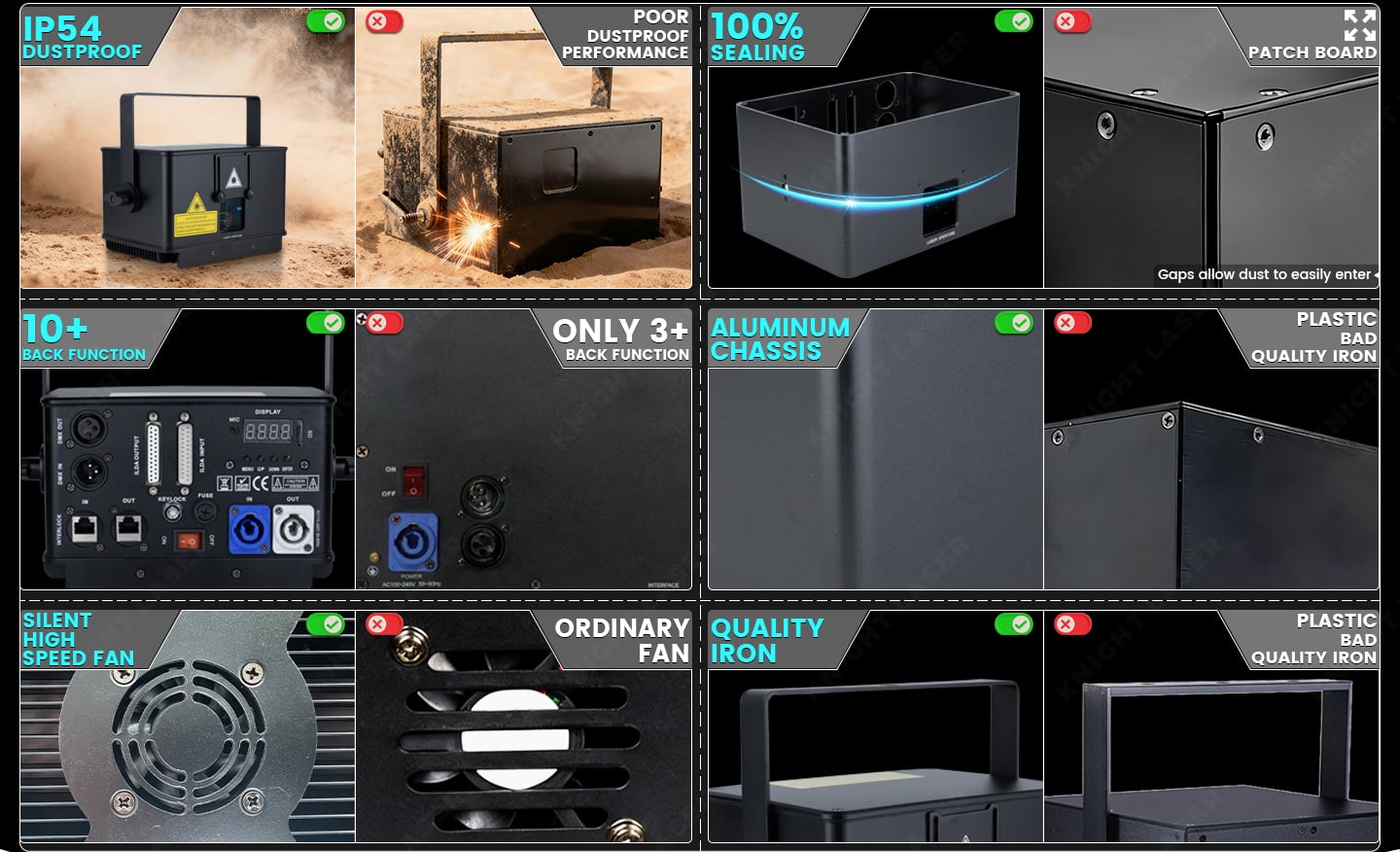

Integrated structural design, 100% sealing, effectively preventing the entry of tobacco oil
| Laser power | 3w[ R:700mw 638nm;G:800mw 520nm; B:1.5w 445nm] |
| Cooling method | integrated aluminum radiator, the whole machine is cold and cooling down |
| Control signal mode | TTL/Analog automatic switching |
| Modulation voltage | ≦ 100K |
| Laser divergence angle | <1.2mrad (full -angle) |
| Laser spot size | 5*6.2mm at the size of the outlet |
| Scanner | AT 15KPPS High-quality medium membrane reflectance> 99% @45 ° incident (cover wavelength: 400nm-680mm) |
| Scan angle | maximum 60 ° |
| Laser service life | ≥10000 hours (test results in the constant temperature environment) |
| Laser level | Class IV |
| Control mode | SD (built-in more than 200 effects), sound control, automatic operation, DMX 18/27 channels, master/slave mode, ILDA software control |

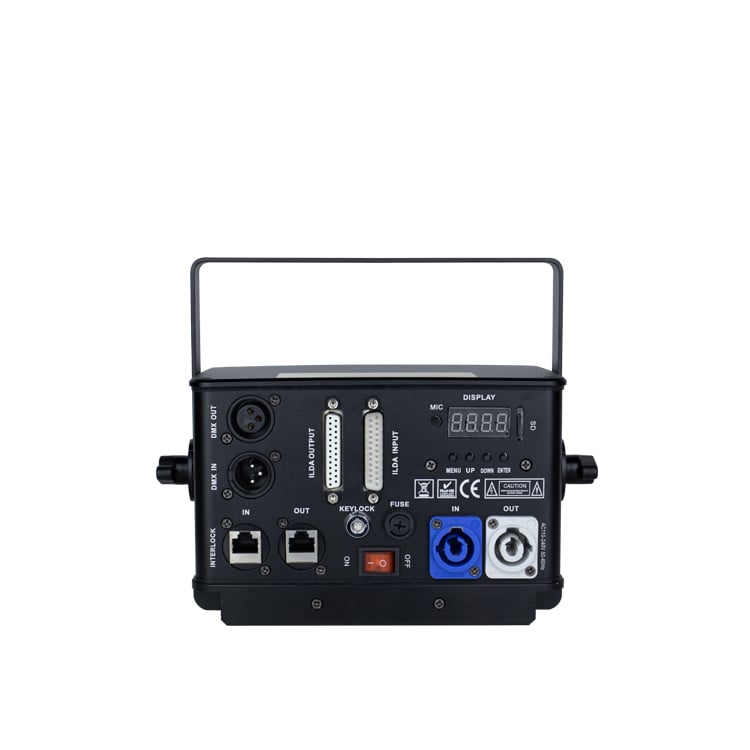

| Back control | AT-S2 digital display, 3 stitches 512 in/out, DB25 in/out, power input/output, fuse |
| Work temperature | -10C-45 ° C |
| Voltage | 100-250V |
| Rated power | 20W |
| Application | stage, DJ, event disco, club, bar, etc. |
| Warranty | 1 year |

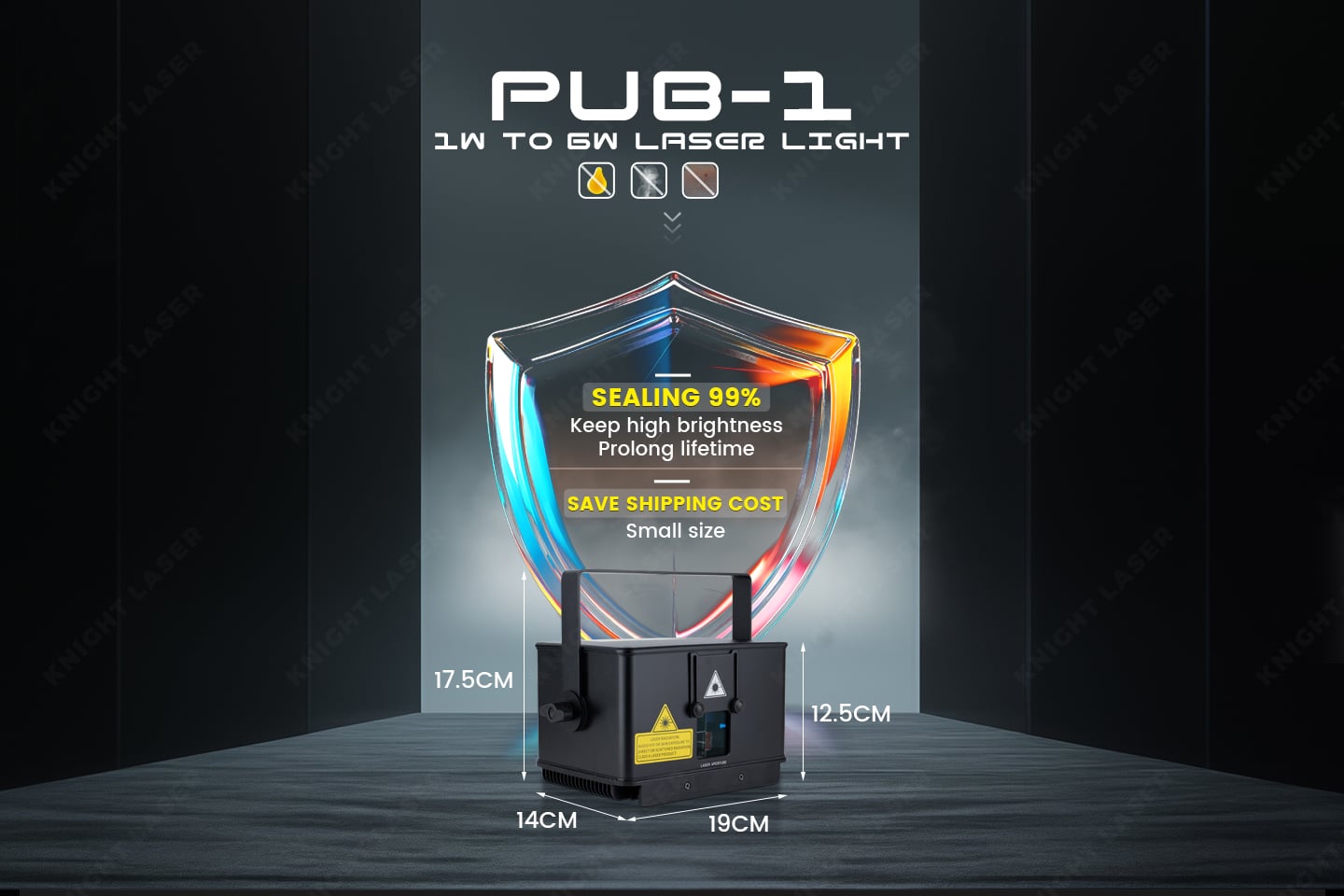

| Size | 19*14*12.5cm/17.5cm (L* W * H) net weight: 2kgs |
