R-12 30W RGB Laser Light

Features:
1. Private model products
2. The sealing level reaches the IP65
3. The heat dissipation layer is on the 2nd floor. The overall heat sink is combined with the laser light source,
and the heat dissipation area reaches 100%, which extend the life of the laser.

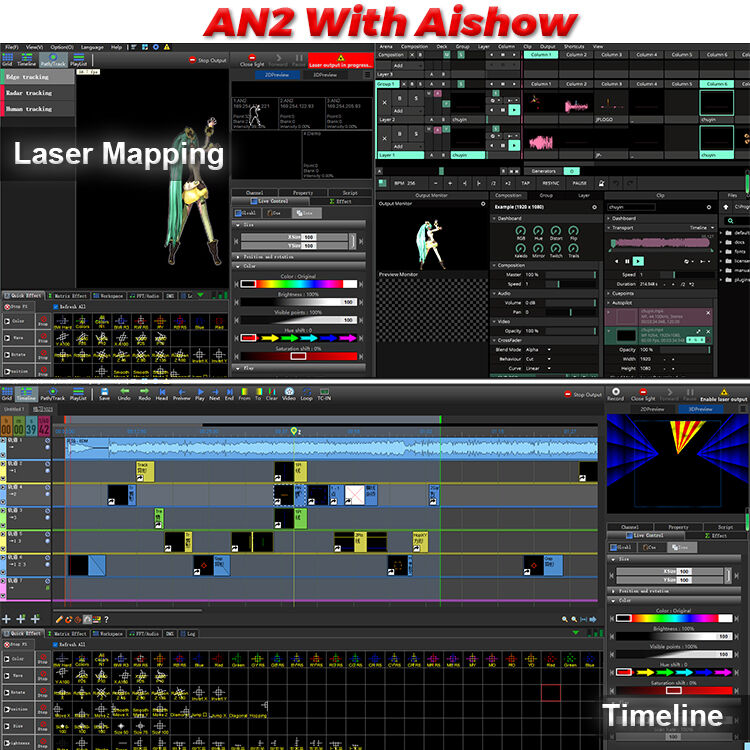

4. Build in An2 AI Show Software
5.Build in Genuine FB4 Optional

Laser power	30W [Red: 9W 638nm; Green: 9W 525nm; Blue: 12W 455nm]
Cooling method	the whole machine is cooled by air cooling
Control signal mode	TTL/analog automatic switching
Modulation voltage	≤100K
Laser divergence angle	<1.2mrad (full angle)
Laser spot size	5*6.2mm at the light outlet
Galvanometer	50LB 35kpps galvanometer high-quality dielectric film reflectance >99% @45°incidence (covered wavelength: 400nm-680mm)
Scanning angle	up to 60°
Laser service life	≥10000 hours (maintain the test results in a constant temperature environment)
Laser class	Class IV
IP rate	IP65
Control mode	SD (built-in more than 300 effects), sound control, automatic operation, DMX 18/27 channels (with RDM), master/slave mode, ILDA software control
Back Controls	Used Seetronic brand: [Ethernet in-out][DMX In-Out] [Power In-Out][lnterlock In-Out] AT-S5 LCD, 3-pin 512 in/out, DB25 in/out, key switch, remote in/out, fuse
Working temperature	-10C-45°C
Voltage	100-250V
Rated power	200W
Applicable	Outdoor show, outdoor advertising, outdoor scenic parks, outdoor roofs, etc..
Warranty	1 years
